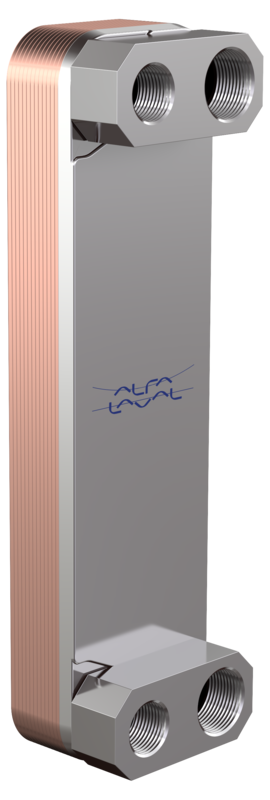

Brazed plate heat exchanger - DOC20 40 plates
3287050747
- Compact
- Easy to install
- Self-cleaning
- Low level of service and maintenance is required
- All units are pressure and leak tested
- Gasket free
- Very robust connection flanges
- Integrated
- mounting bracket
Description
DOC20-40H - S1S2ThreadInt1" S3S4ThreadInt3/4"
Technical details
Application
Hydraulic Oil CoolerNumber Of Plates
40Connection Size Cold Side
1"Connection Size Hot Side
3/4"Connection Type Cold Side
Threaded (Internal)Connection Type Hot Side
Threaded (Internal)Weight - Gross (Kg)
4.98 kgWeight - Net (Kg)
4.7 kgDimension (mm)
93 X 94 X 324 mmPackage Dimension (mm)
160 X 110 X 343 mm
