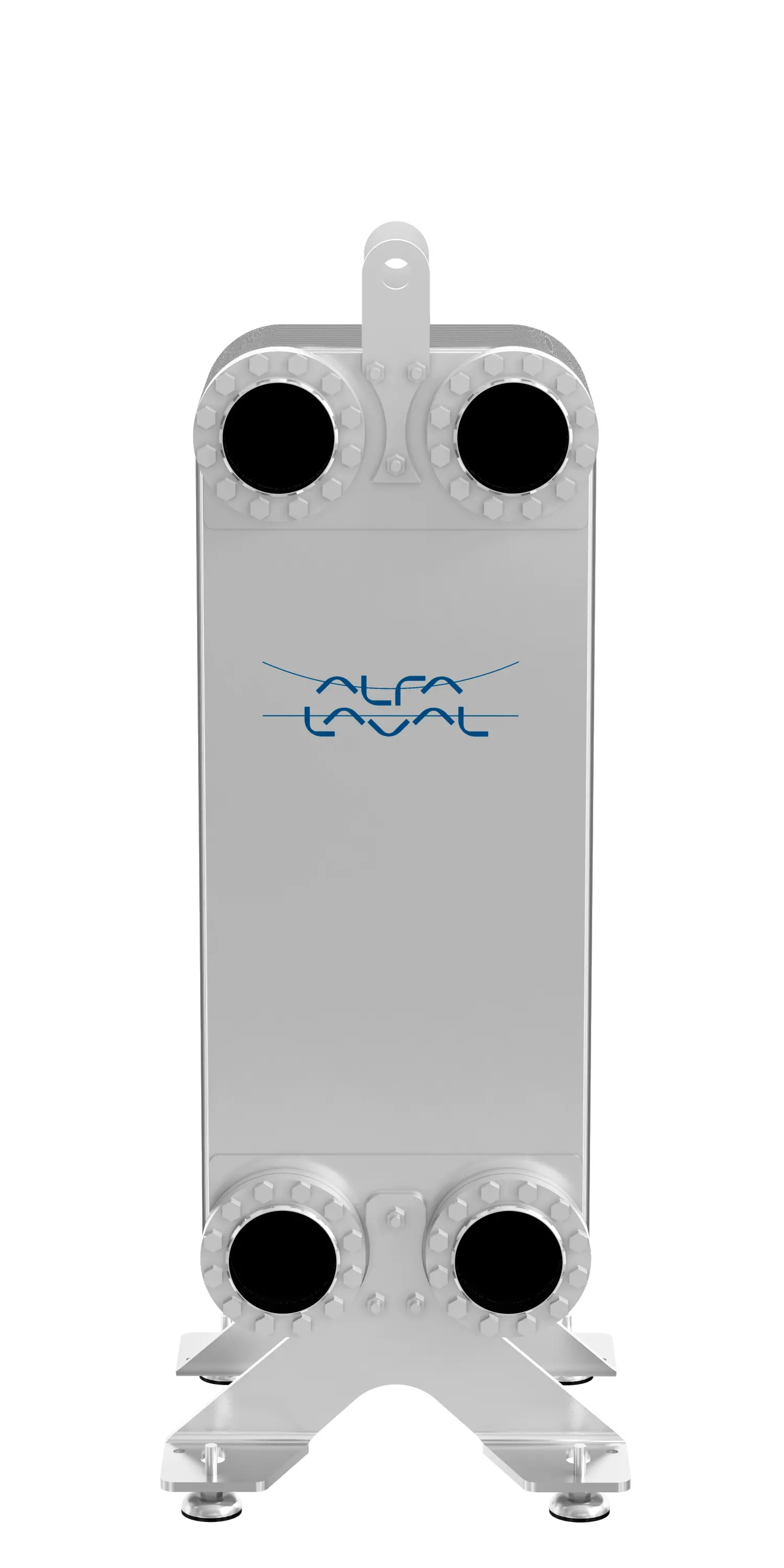

Fusion-bonded plate heat exchanger AlfaNova 400 - 40 plates
3287089413
- Compact
- Easy to install
- Self-cleaning
- Low level of service and maintenance is required
- All units are pressure and leak tested
- Gasket free
- Copper free
Description
AlfaNova 400-40L - S1S2S3S4CompFlanDN100 / PN35
Technical details
Application
HeatingNumber Of Plates
40Connection Size Cold Side
DN100 / PN35Connection Size Hot Side
DN100 / PN35Connection Type Cold Side
Compact flangeConnection Type Hot Side
Compact flangeWeight - Gross (Kg)
104.68 kgWeight - Net (Kg)
84.64 kgDimension (mm)
380 X 390 X 990 mmPackage Dimension (mm)
820 X 685 X 1360 mm
