Hygienic fittings DIN EN 10357-A

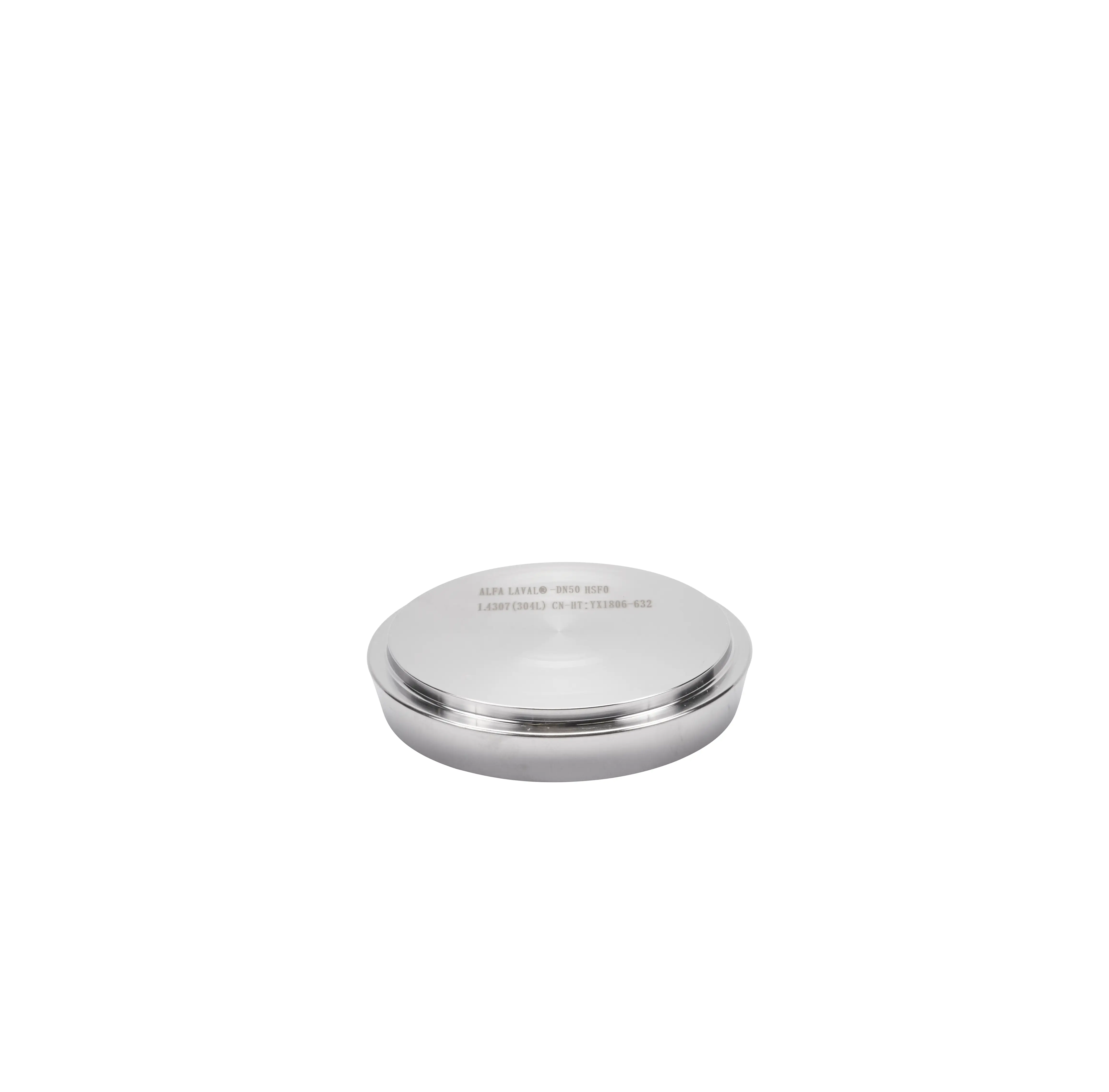

BLIND BD DN150 HSF0 1.4307

9611306510

BLIND BD DN150 HSF0 1.4307

9611306510
Lead time on request
  • 100% DIN standard
  • Hygienic and aseptic
  • Controlled tolerances and geometry
  • Weldability
  • Uniform surface appearance

Description

BLIND BD DN150 HSF0 1.4307 - DIN 11851

Technical details

Range
End caps
Product Model
DIN EN 10357-A Blind Liner BD for Unions DIN 11851
Size
DN150
Material
1.4307 (304L)
Finish
HSF0 (ID≤0.8/OD≤1.6)
Connection type
Weld ends
Standard
DIN 11851
Design
BD liner
Dimension A, mm
176.00
Dimension B
18.00
Dimension D, mm
163.00
Dimension E, mm
24.00
Weight - Net (Kg)
4.26 kg
