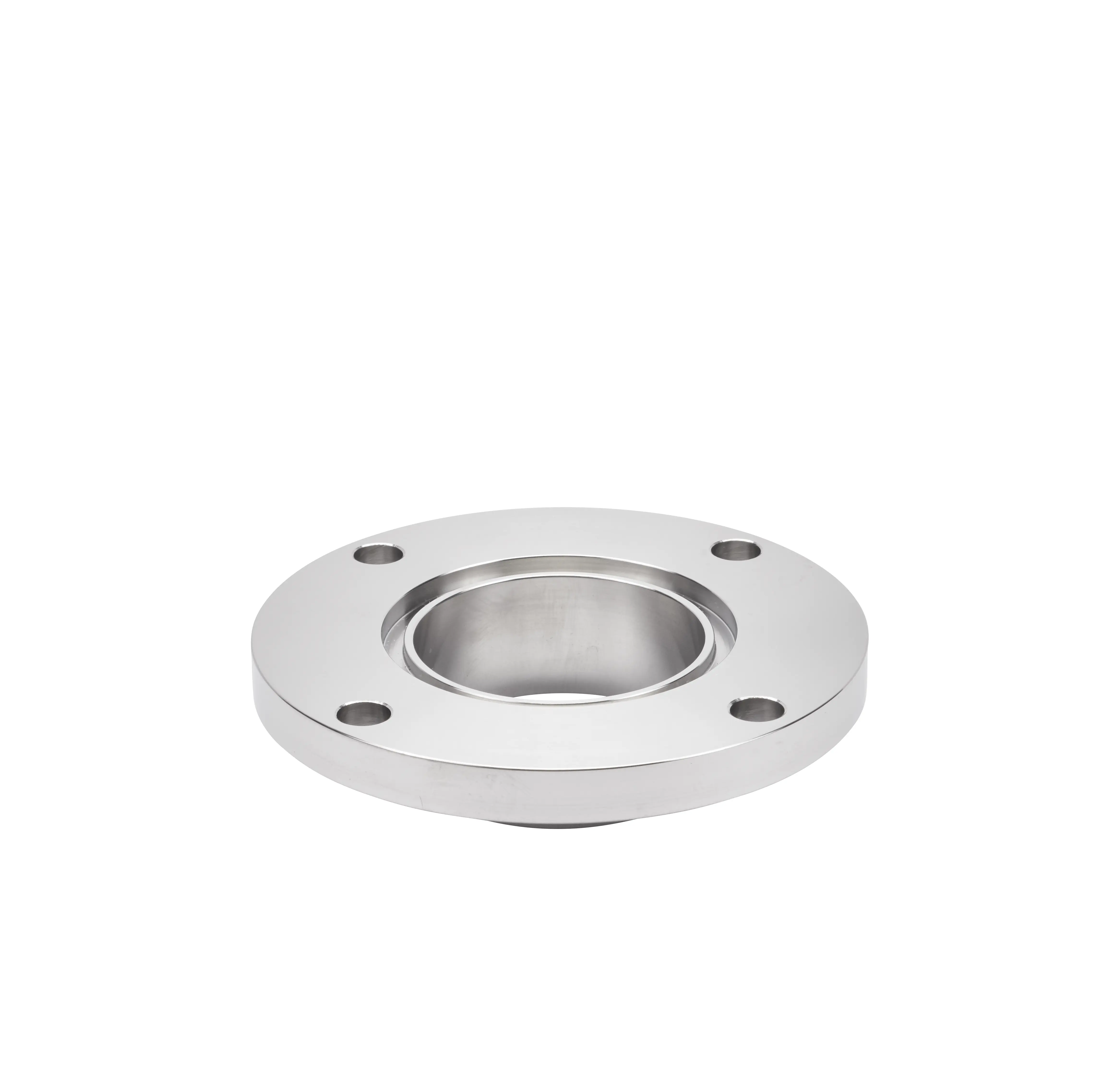

FLANGE PN16 DN50 HSF0 1.4404
FIT TO EN10357-A TUBE GROOVE
9612493004
- 100% fit to DIN-products
- Easy to install with smooth, crevice free interiors and self-aligning joints
- Laser marked with heat number, dimension, surface, material etc.
Documentation
Technical details
Range
FlangesProduct Model
Fit to DIN Pressure FlangesSize
DN50Material
1.4404 (316L)Finish
HSF0 (ID≤0.8/OD≤1.6)Connection type
Weld endsStandard
Fit to EN10357-ADesign
Groove PN16OD/ID x t
53.00/50.00 x 1.50Dimension A, mm
91.00Dimension B
25.00Dimension C, mm
10.00Weight - Net (Kg)
0.63 kgNet weight
0.626 kg
