LKC Non-return Valve

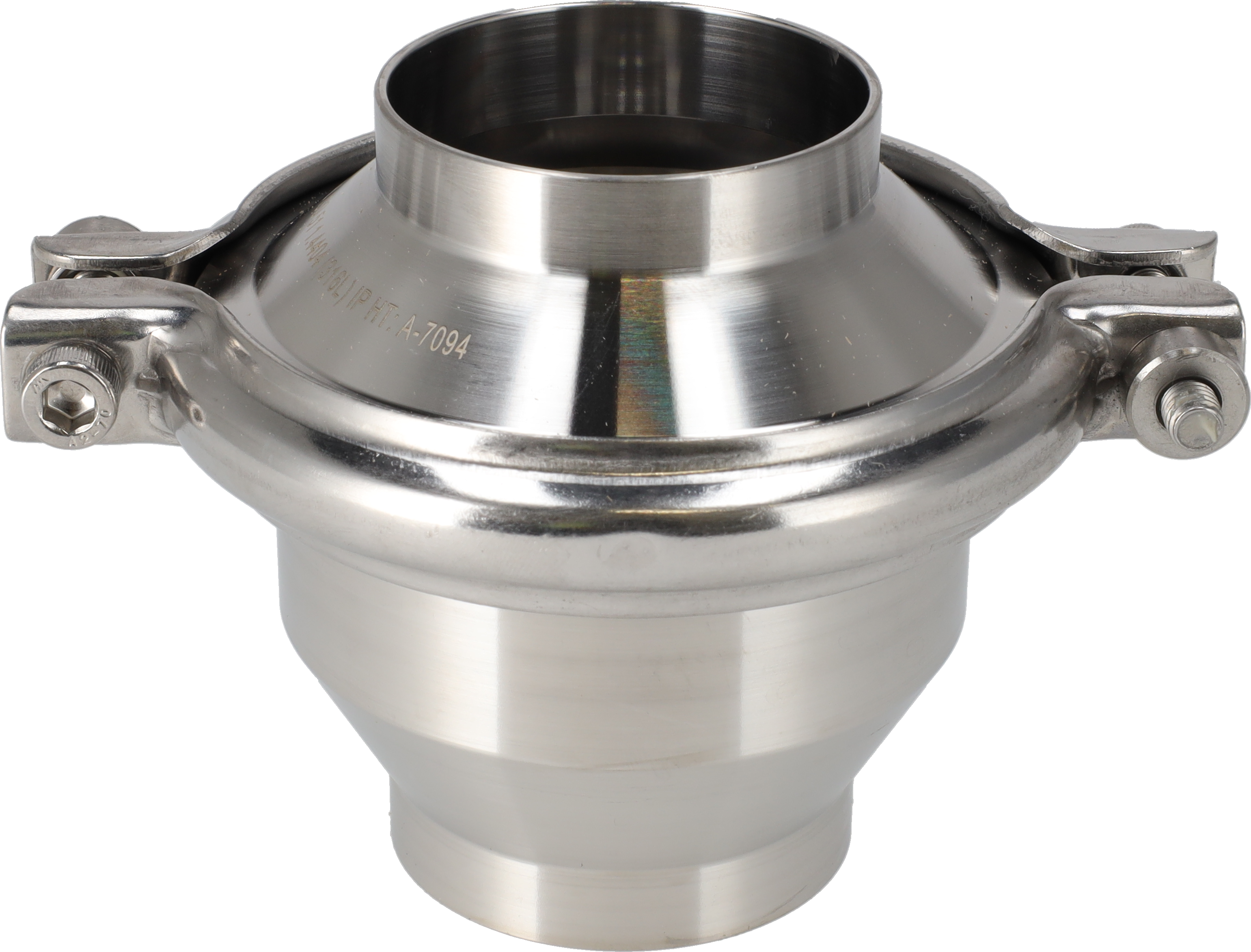

NON-RETURN VALVE LKC-2-DIN-W-

9614063164

NON-RETURN VALVE LKC-2-DIN-W-

9614063164
Lead time on request
  • Highly reliable, self-acting valve
  • Easy to install
  • Protects process equipment
  • Prevents reverse flow
About
NON-RETURN VALVE LKC-2-DIN-W- - DN65-NBR-316L

Documentation

LKC Non-return Valve Product leaflet (en-US)PDF
Alfa Laval LKC-2 Non-return Valve & LKC UltraPure Non-return Valve instruction manual (en)PDF
LKC-2_-_LKC_UltraPure_-_Non-return_Valve_Manual_EN-GB (en)PDF

Technical details

Size inch
2.5
Size DIN
DN65
Product wetted steel part
1.4404 (316L)
Elastomer
NBR
Connection type
Welding ends
Installation recommendations
Vertical position
Connection size
63.5
Connection size inch
2.5
Inside surface quality
Ra ≤ 0.8 μm
Outside surface quality
Bright
Max product pressure
1000 kPa (10 bar)
Max product pressure psi
14.5 PSI
Max temperature
140° C (EPDM)
Max temperature fahrenheit
284°F (EPDM)
Min temperature
-10° C
Min temperature fahrenheit
14°F
Dimension a mm
95.0
Dimension a inch
3.74
Dimension h mm
127.0
Dimension h inch
5.39
Dimension t mm
2
Dimension t inch
0.07
Outer diameter mm
70.0
Outer diameter inch
2.50
Inner diameter mm
66.0
Inner diameter inch
2.38
Classification
II 2 G D*
Certification
ATEX
