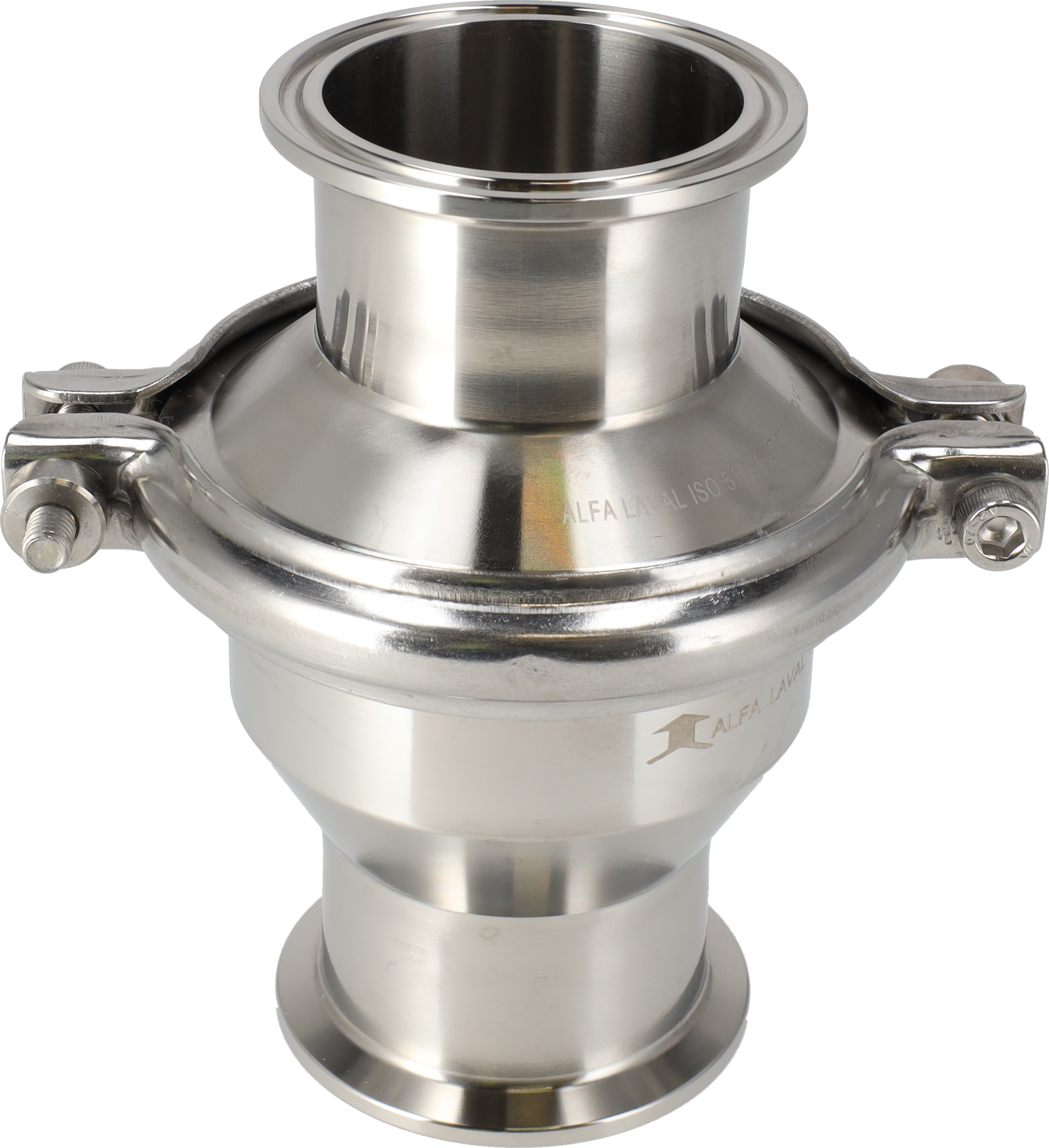

LKC Non-return Valve

NON-RETURN VALVE LKC-2-ISO-.

9612650164

NON-RETURN VALVE LKC-2-ISO-.

9612650164
Lead time on request
  • Highly reliable, self-acting valve
  • Easy to install
  • Protects process equipment
  • Prevents reverse flow

Description

NON-RETURN VALVE LKC-2-ISO-. - CLAMP-63.5-EPDM-316L

Technical details

Size inch
2.5
Product wetted steel part
1.4404 (316L)
Elastomer
EPDM
Connection type
Clamp ends
Installation recommendations
Vertical position
Connection size
63.5
Connection size inch
2.5
Inside surface quality
Ra ≤ 0.8 μm
Outside surface quality
Bright
Max product pressure
1000 kPa (10 bar)
Max product pressure psi
14.5 PSI
Max temperature
140° C (EPDM)
Max temperature fahrenheit
284°F (EPDM)
Min temperature
-10° C
Min temperature fahrenheit
14°F
Dimension a mm
95.0
Dimension a inch
3.74
Dimension h mm
127.0
Dimension h inch
5.39
Dimension t mm
1.7
Dimension t inch
0.07
Outer diameter mm
63.9
Outer diameter inch
2.50
Inner diameter mm
60.5
Inner diameter inch
2.28
Classification
II 2 G D*
Certification
ATEX
Size iso
63.5

Documentation

LKC Non-return Valve Product leaflet (en-US)PDF
Alfa Laval LKC-2 Non-return Valve & LKC UltraPure Non-return Valve instruction manual (en)PDF
3D model for item - 9612650164 (en)UNKNOWN
LKC-2_-_LKC_UltraPure_-_Non-return_Valve_Manual_EN-GB (en)PDF
