- Reliable full-flow performance, especially for pigging systems
- Compact, straightforward hygienic design
- Versatile operation with automated or manual control
- Durable and water hammer-safe
- Easy to clean (optional cavity filler or cavity cleaning)
Description

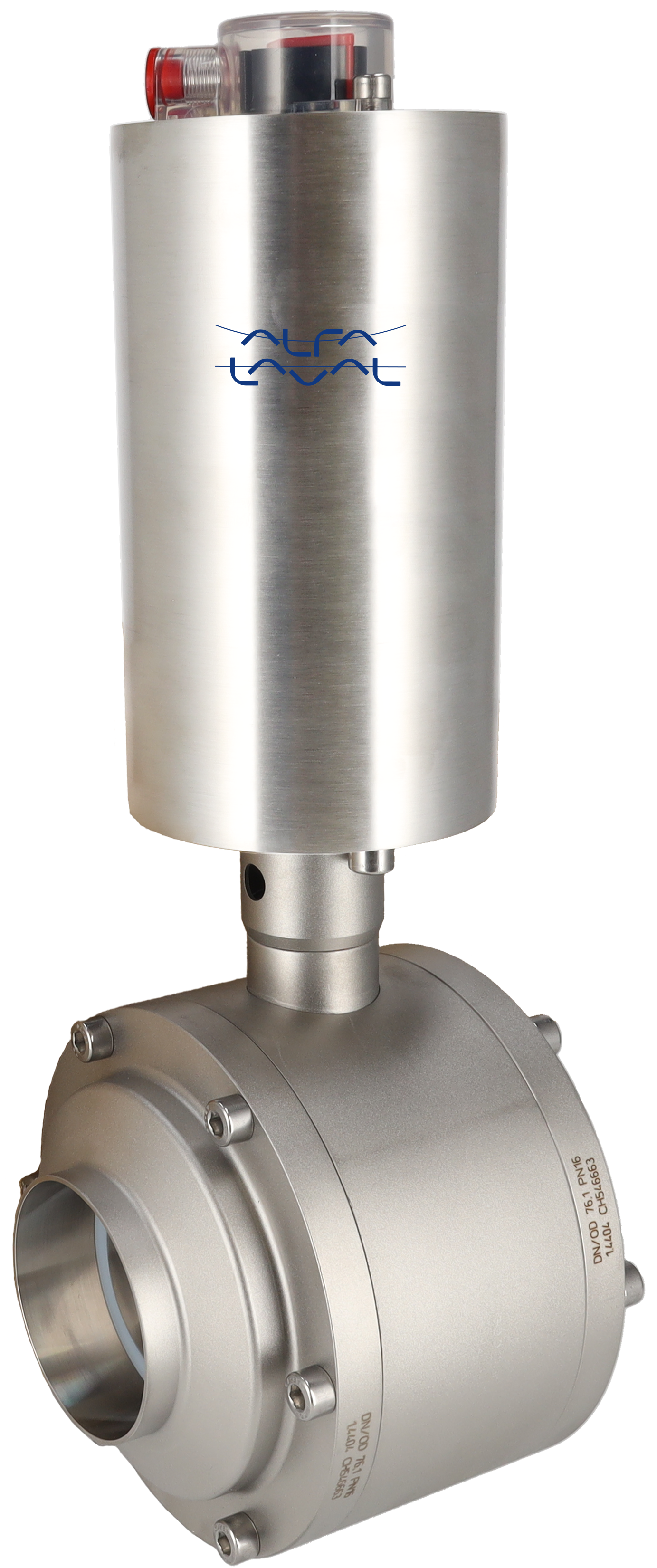

BALL VALVE SBV-DN40-W/W-NC - BALL VALVE SBV-DN40-W/W-NC - EPDM-ACT. Ø104
Technical details
Size DIN
DN40Connection type
Welding endsSize mm
38.1Size inch
1.5Product wetted steel part
1.4404 (316L)Other steel parts
1.4307 (304)Elastomer
EPDMOther seals
NBRMax product pressure
to 1600 kPa (16 bar)Max product pressure psi
255 PSIActuator function
Normally closedActuation
PneumaticInside surface quality
Ra < 0.8 µmOutside surface quality
BlastedTemperature range operating
+0 °C to +95 °CTemperature range operating fahrenheit
+32 °F to +203 °FMin product pressure
Full vacuumMin product pressure psi
Full vacuumTemperature range steralization
°C to 140°CTemperature range steralization fahrenheit
to +284 °FTemperature range ambient air
+4 °C to +45 °CTemperature range ambient air fahrenheit
+39 °F to +113 °FBody combination
Standard actuator ø104Outer diameter mm
41Inner diameter mm
38Classification
II 2 G DDimension a mm
95Dimension a inch
3.74Dimension b mm
103Dimension b inch
4.06Dimension e mm
104Dimension e inch
4.09Dimension f mm
315Dimension f inch
12.4Dimension l mm
7.48Dimension l inch
.29Dimension t mm
1.5
