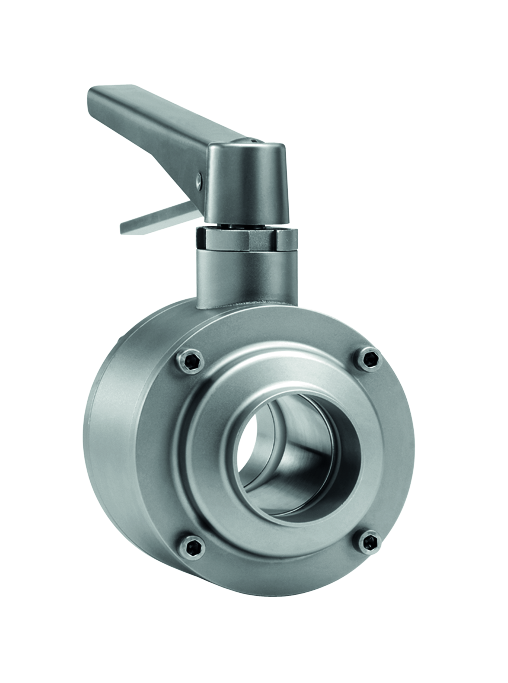

BALL VALVE SBV-DN50-W/W-MAN
BALL VALVE SBV-DN50-W/W-MAN - NBR
9612646063
Documentation
Technical details
Size DIN
DN50Connection type
Welding endsSize mm
50.8Size inch
2.0Product wetted steel part
1.4404 (316L)Other steel parts
1.4307 (304)Elastomer
NBROther seals
NBRMax product pressure
0 to 1600 kPa (16 bar)Max product pressure psi
322 PSIActuator function
StandardActuation
ManualInside surface quality
Ra < 0.8 µmOutside surface quality
BlastedTemperature range operating
+0 °C to +95 °CTemperature range operating fahrenheit
+32 °F to +203 °FMin product pressure
Full vacuumMin product pressure psi
Full vacuumTemperature range steralization
0°C to 100°CTemperature range steralization fahrenheit
to +212 °FTemperature range ambient air
+4 °C to +45 °CTemperature range ambient air fahrenheit
+39 °F to +113 °FBody combination
Standard handleOuter diameter mm
53Inner diameter mm
50Classification
II 2 G DDimension a mm
110Dimension a inch
4.33Dimension b mm
113Dimension b inch
4.45Dimension c mm
180Dimension c inch
7.09Dimension d mm
135Dimension d inch
5.31Dimension t mm
1.5Weight - Net (Kg)
4.51 kgNet weight
4.51 kg
