- Reliable full-flow performance, especially for pigging systems
- Compact, straightforward hygienic design
- Versatile operation with automated or manual control
- Durable and water hammer-safe
- Easy to clean (optional cavity filler or cavity cleaning)
About

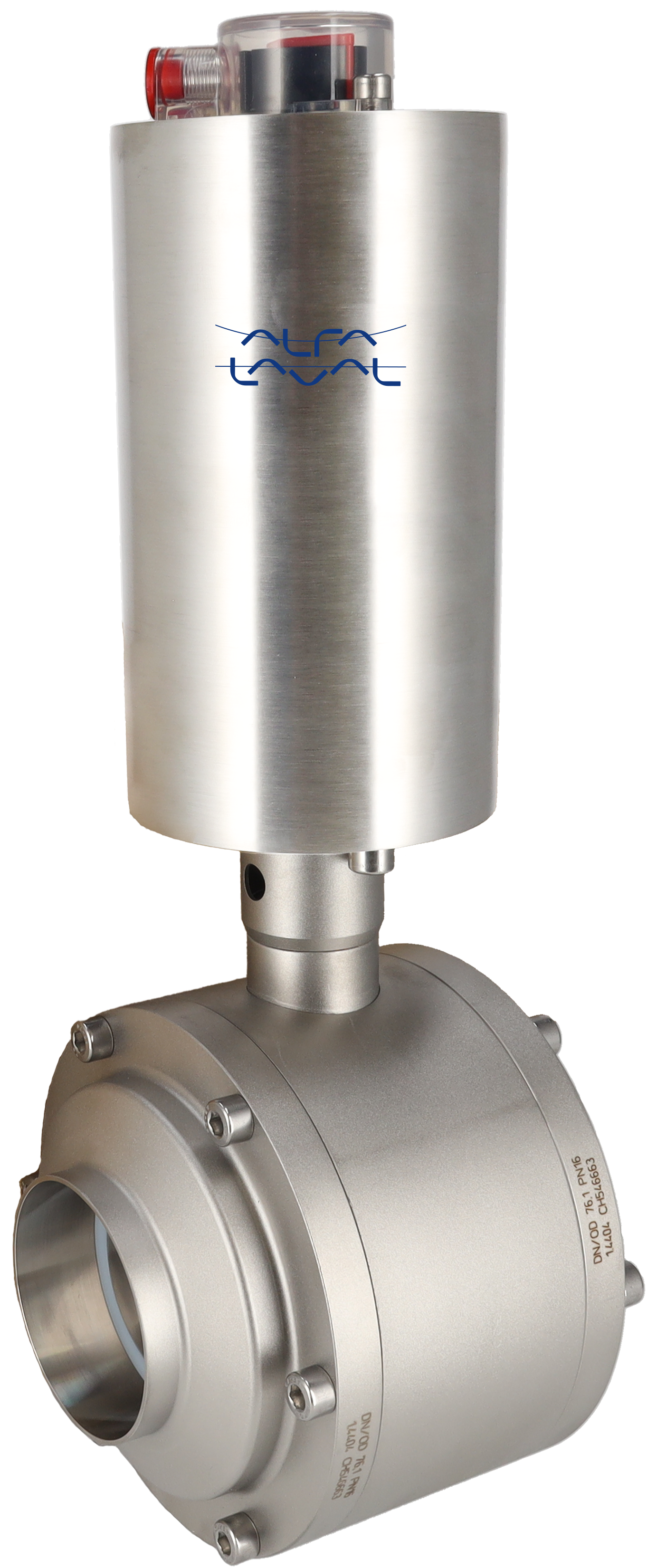

BALL VALVE SBV-DN50-W/W-NC - BALL VALVE SBV-DN50-W/W-NC - EPDM-ACT. Ø104
Documentation
Technical details
Size DIN
DN50Connection type
Welding endsSize mm
50.8Size inch
2.0Product wetted steel part
1.4404 (316L)Other steel parts
1.4307 (304)Elastomer
EPDMOther seals
NBRMax product pressure
0 to 1600 kPa (16 bar)Max product pressure psi
256 PSIActuator function
Normally closedActuation
PneumaticInside surface quality
Ra < 0.8 µmOutside surface quality
BlastedTemperature range operating
+0 °C to +95 °CTemperature range operating fahrenheit
+32 °F to +203 °FMin product pressure
Full vacuumMin product pressure psi
Full vacuumTemperature range steralization
0°C to 140°CTemperature range steralization fahrenheit
to +284 °FTemperature range ambient air
+4 °C to +45 °CTemperature range ambient air fahrenheit
+39 °F to +113 °FBody combination
Standard actuator ø104Outer diameter mm
53Inner diameter mm
50Classification
II 2 G DDimension a mm
110Dimension a inch
4.33Dimension b mm
113Dimension b inch
4.45Dimension e mm
104Dimension e inch
4.09Dimension f mm
324Dimension f inch
12.76Dimension l mm
7.48Dimension l inch
0.29Dimension t mm
1.5Weight - Net (Kg)
9 kg
