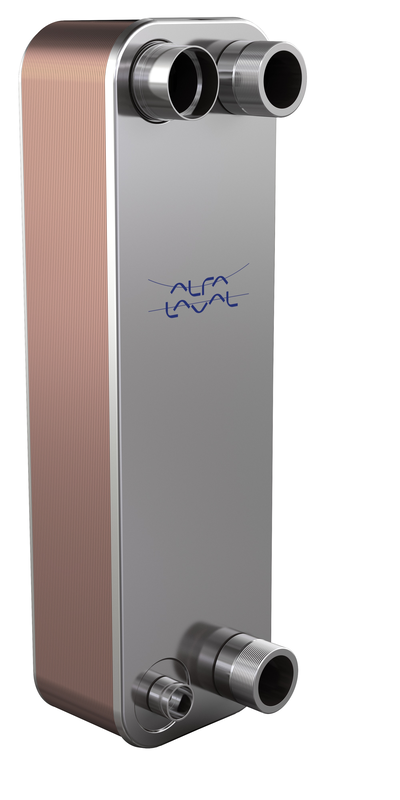

ACH220EQ-30AM
3287155302
Description
Evaporator - Nominal tons: 12,000 BTUH/ton; 54ºF Entering Water Temperature (EWT); 44ºF Leaving Water Temperature (LWT); 8ºF Superheat; 2.4 gpm/ton
Subcooling - Nominal tons: 12,000 BTUH/ton; Liquid refrigerant subcooled from 100ºF to 50ºF; 8ºF Superheat; 35ºF Evaporating Temperature
AC-products is equipped with an integrated distribution system in the S3 port to ensure the performance as evaporator. AC products can also be used as condensers with full condensation. In case of partial condensation a CB-product is preferred however.
Subcooling - Nominal tons: 12,000 BTUH/ton; Liquid refrigerant subcooled from 100ºF to 50ºF; 8ºF Superheat; 35ºF Evaporating Temperature
AC-products is equipped with an integrated distribution system in the S3 port to ensure the performance as evaporator. AC products can also be used as condensers with full condensation. In case of partial condensation a CB-product is preferred however.
Technical details
Product Type Economizer / Subcooler, Evaporator / Chiller - Single circuit |
Application Refrigeration |
Nominal Capacity (TR) 16 |
Dimension (in) 4.64 X 7.52 X 24.25 |
Number of Circuits Single |
Plate Size W x H (in) 7.5 x 24.3 |
Connection Size Hot Side 2 1/8" |
Connection Size Cold Side 2 1/8" |
Connection Type Hot Side Soldering |
Connection Type Cold Side Soldering |
Number Of Plates 30 |
