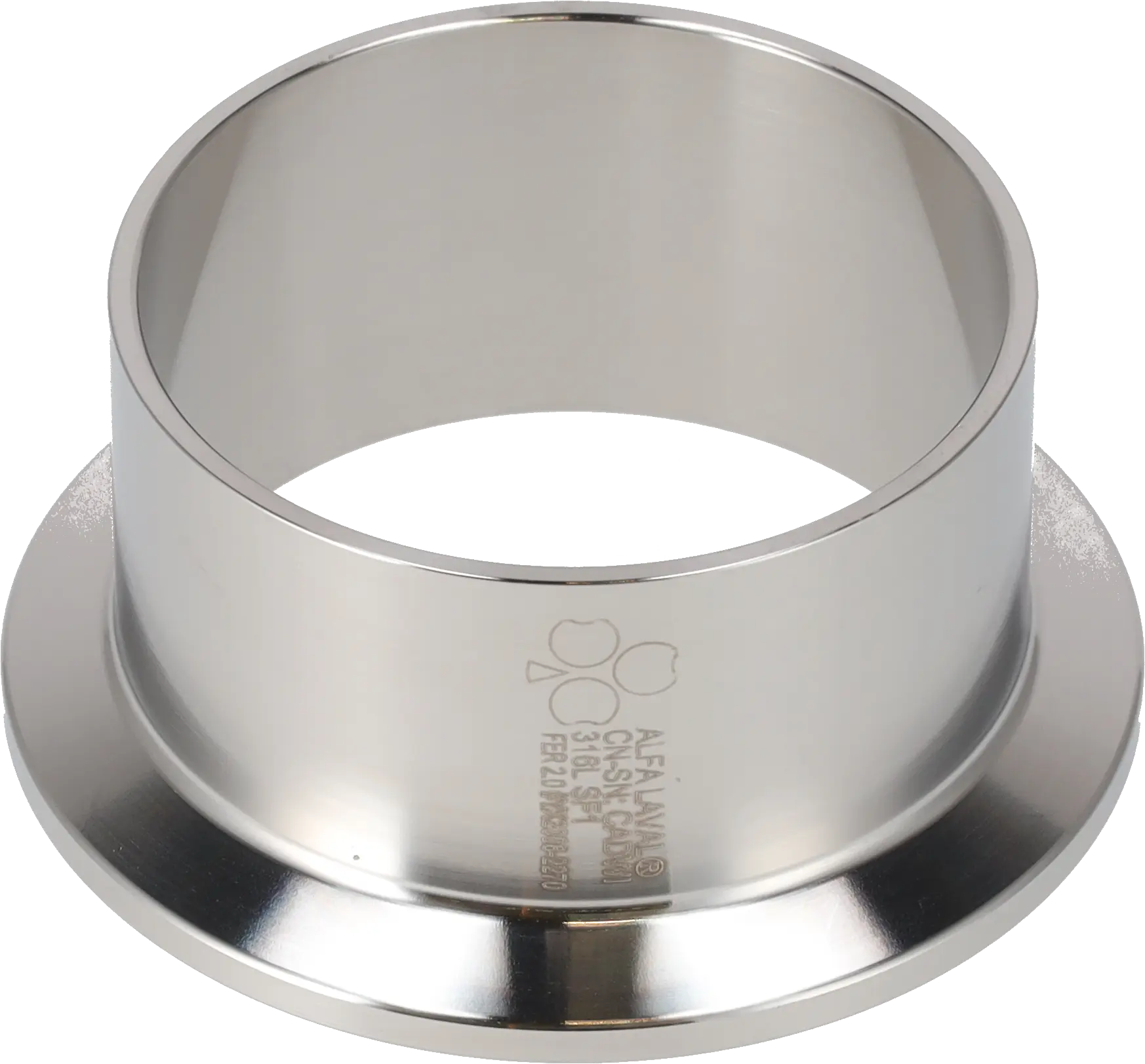

L14AM-1-316L-SF1 Type A

CLAMP FERRULE 25.4MM

9614000602

CLAMP FERRULE 25.4MM

9614000602

Lead time on request

Mainly for the pharmaceutical - and bio industries following the ASME BPE standards
Large flexibility in system design
Efficient cleaning processes that reduce downtime, minimize cross-contamination risks, and ensure the integrity of the final product
Minimizes the chances of product adulteration

Documentation

Tubes and Fittings Product leaflet (en-US)PDF

3D model for item - 9614000602 (en)UNKNOWN

Range

Ferrules

Product Model

Tri-Clover BPE Ferrules

Size

Material

316L

Finish

SF1(PL) (ID≤20/OD≤32µin)

Connection type

Tri-Clamp and Weld

Standard

ASME BPE

Design

L14AM

OD/ID x t

25.40/22.10 x 1.65

OD/ID x t, inch

1.000/0.870 x 0.065

Dimension A, Inch

1.13

Dimension A, mm

28.58

Dimension B, Inch

1.98

Dimension B

50.39

Weight - Net (Kg)

0.16 kg

Net weight

0.155 kg
