Home/Product/Valves/Double Seat Valves/Unique Mixproof PMO Valve/PMOPLCPBNNBNNNNE26060NNNNNNNNN

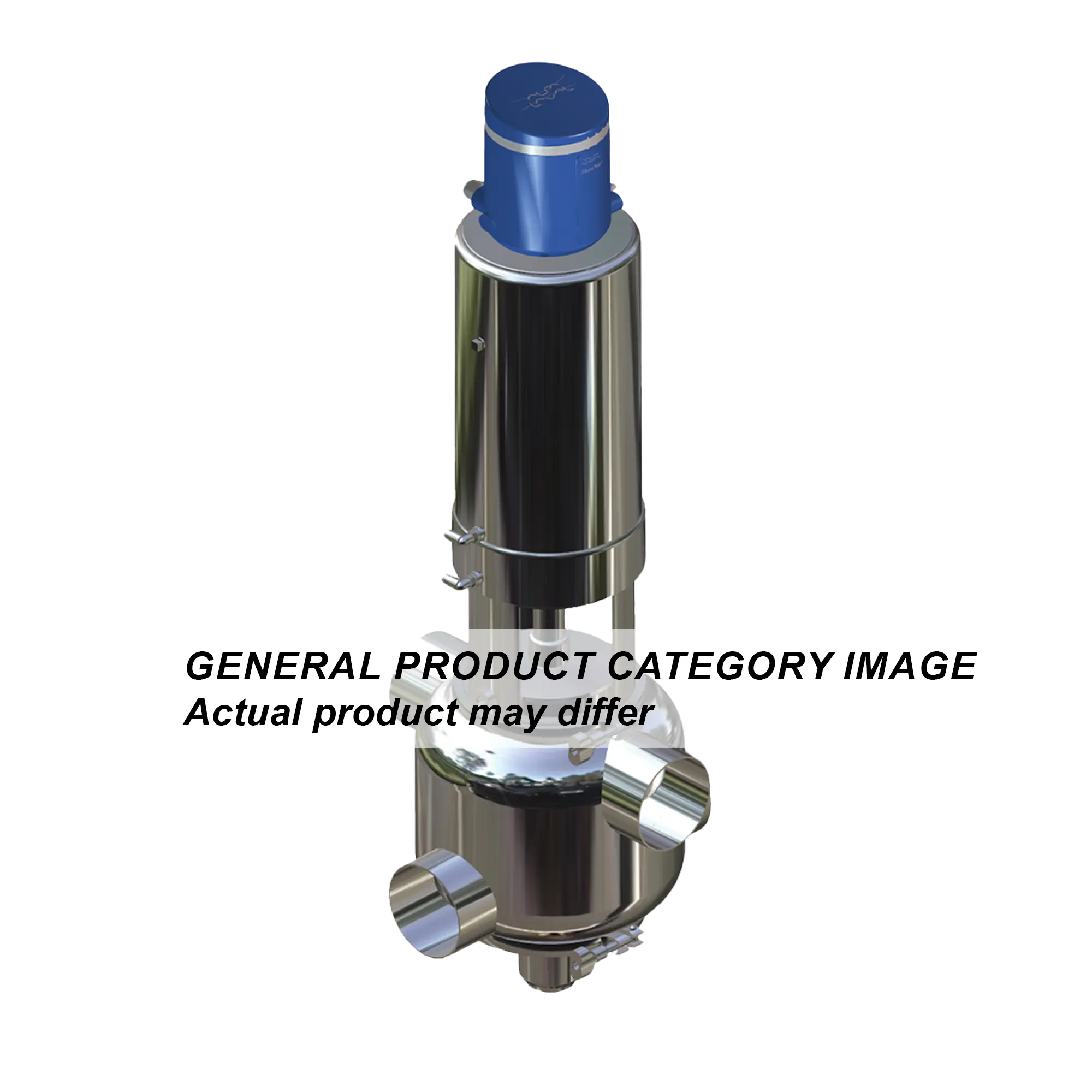

Unique Mixproof PMO Valve

PMOPLCPBNNBNNNNE26060NNNNNNNNN


UNIQUE PMO CP SERVICE VALVE
9634099718

PMOPLCPBNNBNNNNE26060NNNNNNNNN


UNIQUE PMO CP SERVICE VALVE
9634099718
Lead time on request
  • Complies with the seat lift requirements of the Pasteurized Milk
  • Ordinance (PMO), 3-A Sanitary Standards and the US Food and Drug Administration
  • (FDA)
  • Enhanced product safety
  • Cost-effective, spillage-free operation
  • Optimized plant efficiency and enhanced cleanability
  • Leakage detection and leakage chamber cleaning

Documentation

Unique Mixproof PMO Plus CP Product leaflet (en-US)PDF
Valve Clusters Guidelines for installation of valve clusters and other types of installations (en)PDF

Technical details

Product Model
Unique Mixproof PMO Plus CP
Size inch lower body
6
Size inch upper body
6
Elastomer
EPDM
Product wetted steel part
1.4404 (316L)
Body combination
None
Electric connection
None
Inside surface quality
3A bright
Seal lift
Upper, Lower
Leakage chamber cip
No
Spindle clean
No
Balance plug
Upper, Lower
Dimension a inch
39.45
Dimension b inch
17.32
Dimension c inch
6.8
Dimension e inch
8.3
Dimension f1 inch
2.95
Dimension f2 inch
0.2
Dimension l inch
14.92
Dimension m inch
1.52
Outer diameter inch
6
Inner diameter inch
5.78
Dimension t inch
0.11
Net weight
46.999 kg
