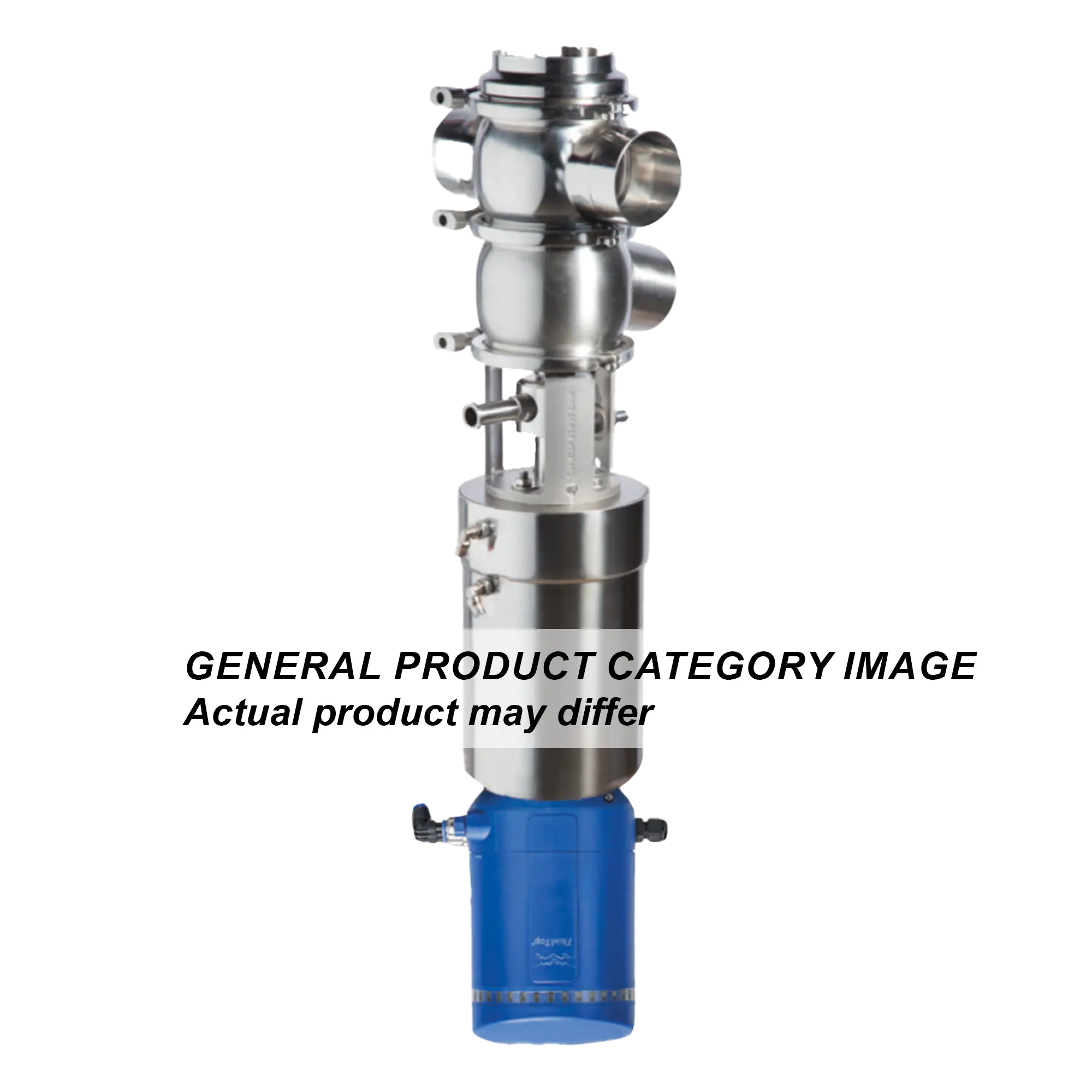

Unique Mixproof PMO Valve

PMOVTCPUNIBWWNOE225253001807TP


UNIQUE PMO VT VALVE TTOP 7TP
9634101067

PMOVTCPUNIBWWNOE225253001807TP


UNIQUE PMO VT VALVE TTOP 7TP
9634101067
Lead time on request
  • Complies with the Pasteurized Milk Ordinance (PMO)
  • Enhanced product safety
  • Cost-effective, spillage-free operation
  • Optimized plant efficiency and enhanced cleanability
  • Leakage detection and leakage chamber cleaning

Documentation

Unique Mixproof PMO VTV Product leaflet (en-US)PDF
Valve Clusters Guidelines for installation of valve clusters and other types of installations (en)PDF

Technical details

Product Model
Unique Mixproof PMO VTV
Connection type
Weld ends
Size inch lower body
2.5
Size inch upper body
2.5
Elastomer
EPDM
Product wetted steel part
1.4404 (316L)
Body combination
300
Port configuration
180
Electric connection
M12
Indication
ASi 62 node 3 sol
Inside surface quality
3A bright
Seal lift
Upper, Lower
Leakage chamber cip
Yes
Spindle clean
No
Balance plug
Upper
Dimension a inch
30.28
Dimension b inch
4.33
Dimension e inch
1.95
Dimension f1 inch
1.5
Dimension f2 inch
0.39
Dimension g inch
1.58
Dimension h inch
1.22
Dimension l inch
9.92
Dimension m inch
0.827
Dimension n inch
5.71
Dimension y inch
3/4"
Dimension q inch
4.51
Dia d inch
7.32
Dia j inch
7.84
Dia k inch
7.68
Outer diameter 1 inch
2.5
Inner diameter 1 inch
2.37
Outer diameter 2 inch
4
Inner diameter 2 inch
3.84
Dimension t1 inch
0.063
Dimension t2 inch
0.079
Net weight
28.456 kg
