Unique Mixproof PMO Valve

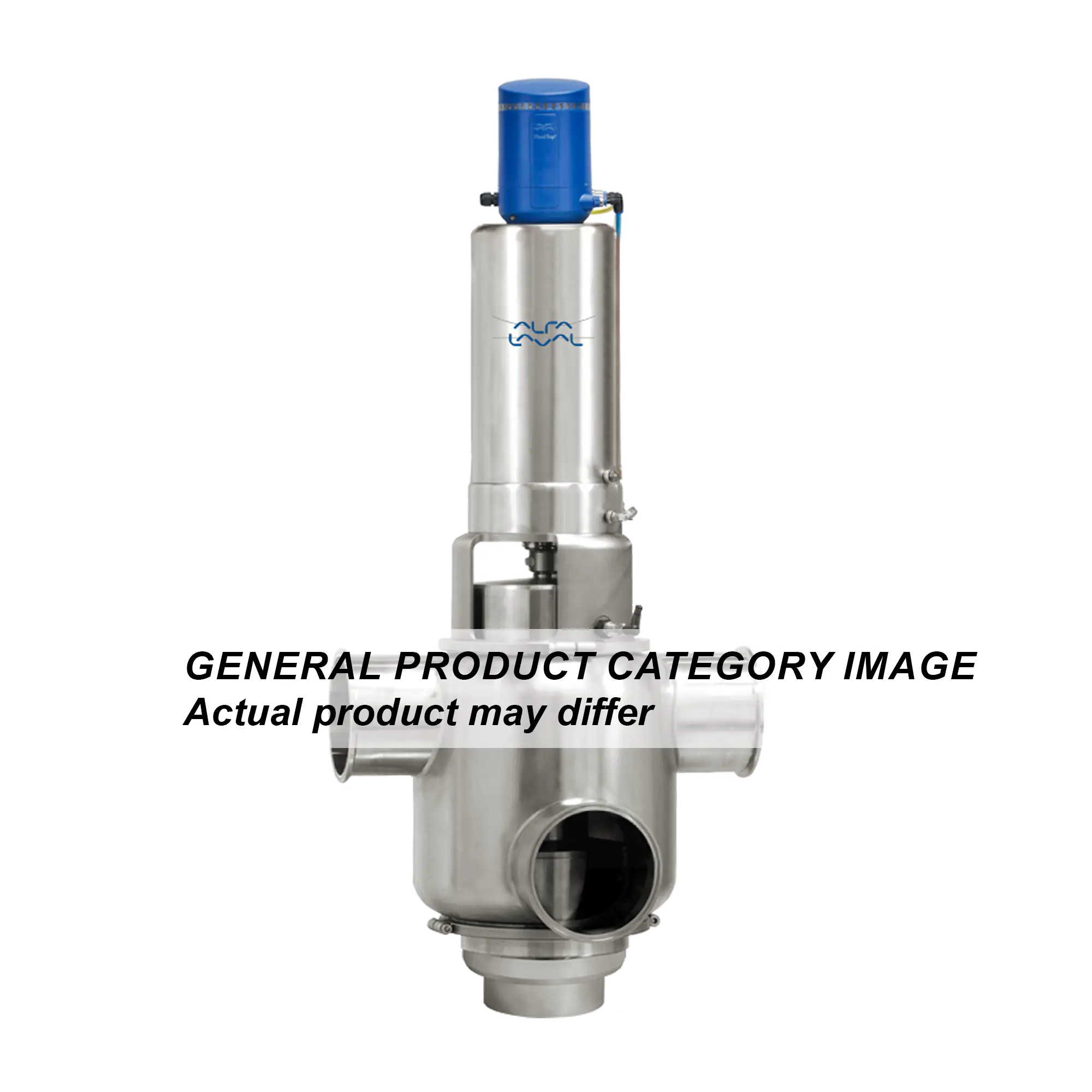

Unique PMO Curd CP Mixproof Valve


PMOCCCPBNNBWWWWE24040W22090NNN - UNIQUE PMO CP CURD VALVE
9614053130

Unique PMO Curd CP Mixproof Valve


PMOCCCPBNNBWWWWE24040W22090NNN - UNIQUE PMO CP CURD VALVE
9614053130
Lead time on request

Documentation

Unique Mixproof PMO Curd CP Product leaflet (en-US)PDF
Unique PMO Product description (en-US)PDF
Valve Clusters Guidelines for installation of valve clusters and other types of installations (en)PDF

Technical details

Product Model
Unique Mixproof PMO Curd CP
Connection type
Weld ends
Size inch lower body
4
Size inch upper body
4
Elastomer
EPDM
Product wetted steel part
1.4404 (316L)
Body combination
W22
Port configuration
90
Electric connection
None
Inside surface quality
3A bright
Seal lift
Upper, Lower
Leakage chamber cip
No
Spindle clean
No
Balance plug
Upper, Lower
Dimension a inch
40.87
Dimension b inch
13.78
Dimension c inch
4.87
Dimension e inch
6.54
Dimension f1 inch
2.95
Dimension f2 inch
0.2
Dimension m inch
0.83
Outer diameter inch
4
Inner diameter inch
3.84
Net weight
59.328 kg
