- Accurate Monitoring: Registers the moment the sensor is hit by the water jet.
- Error Detection: Sends an alarm signal in case of unit failure or constant hit.
- Easy Installation: Simple setup and maintenance.
- Hygienic Design: Complies with 3-A standards and EHEDG guidelines.
- Versatile Use: Suitable for dairy, food, beverage, brewery, and pharmaceutical industries.
- Explosive Environment Approval: Approved for use in Zone 0/20 (product-wetted area) and Zone 2/22 (non-product wetted area).
Descripción

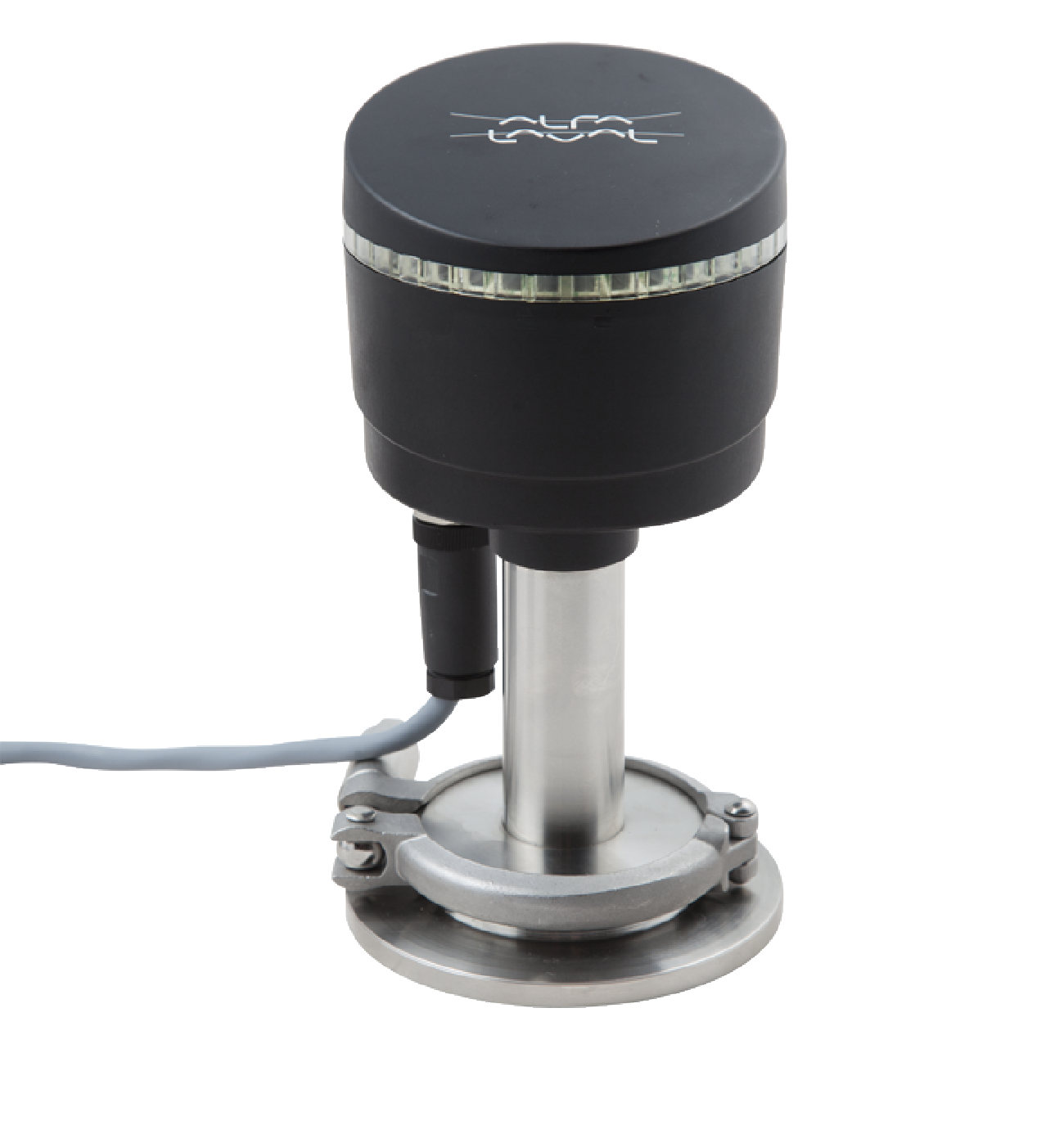

ROTACHECK BASIC - ELECTRICAL CONNECTION: M16 CABLE GLAND.
Datos Técnicos
Product Model
RotacheckSensor type
Rotacheck basicConexión eléctrica
Cable gland M16Elastómero
EPDMPieza de acero en contacto por producto
AISI 316LClase de protección
IP67Digital outputs
HIT 'Rotation OK', Alarm, IdleFieldhouse material
Polymer PA12Tipo de conexión
Conexión de depósito higiénicoOtros sellos
NBR
