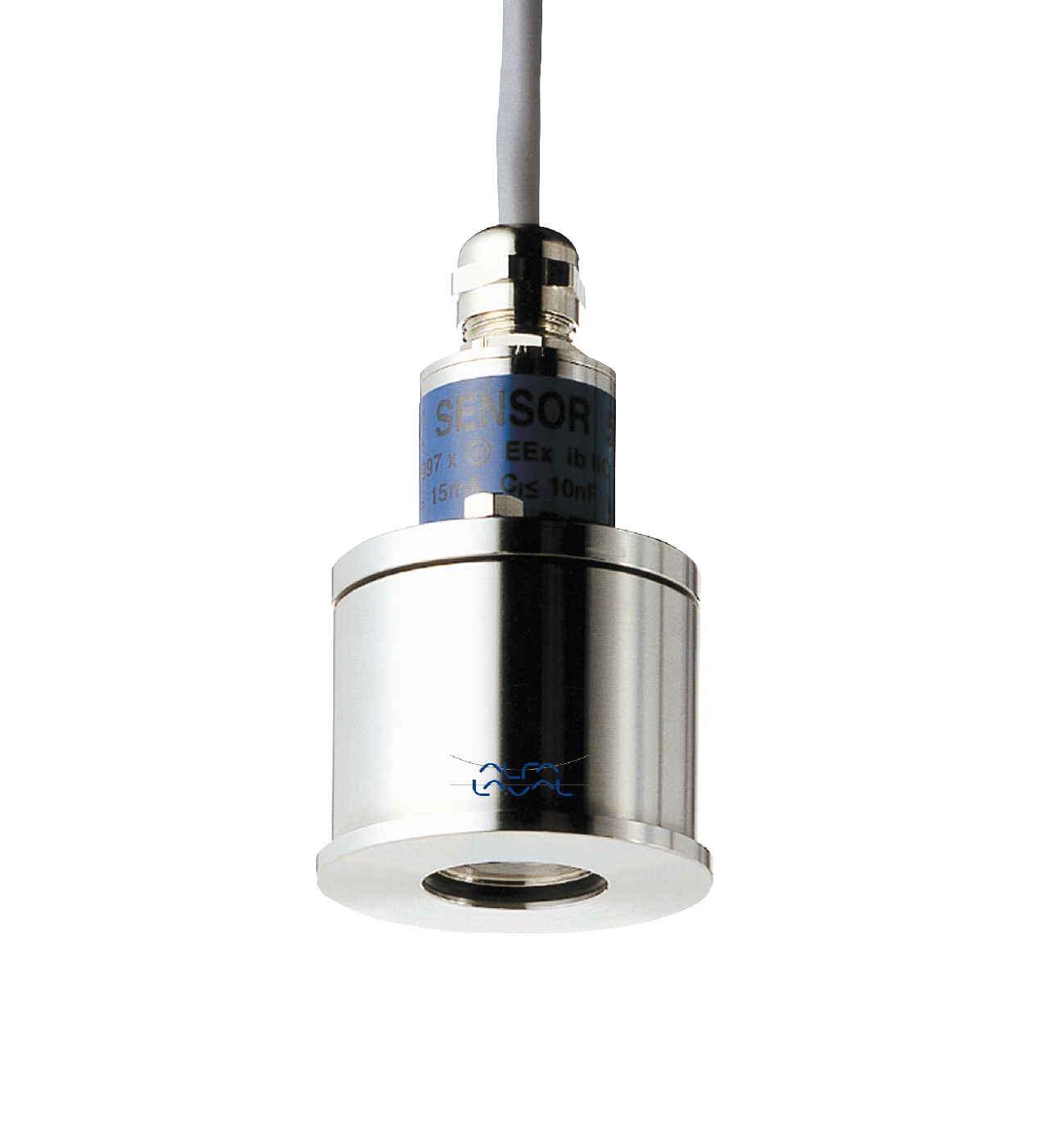

SENSOR EX+EMC 10M CABLE 3.1EX
TE52E05791
Descripción
SENSOR EX+EMC 10M CABLE 3.1EX - THREAD 3/4" BSP, DoC acc. to ISO/IEC 17050-1
Datos Técnicos
Sensor type
Rotacheck sensorCable length m
10MTipo de conexión
AbrazaderaPieza de acero en contacto por producto
1.4404 (316L)Clase de protección
IP67Electric pulse duration
Min. 1.0 sec.Pressure overload on diaphragm bar
15 barPressure overload on diaphragm psi
217 PSIMin operating temperature
-20Min operating temperature fahrenheit
-4Max operating temperature
85Max operating temperature fahrenheit
185Max temperature on diaphragm
140Max temperature on diaphragm fahrenheit
284Max working pressure tank monitoring bar
0.3 barMax repetition frequency
2 Hz
