Hygienic fittings DIN EN 10357-A

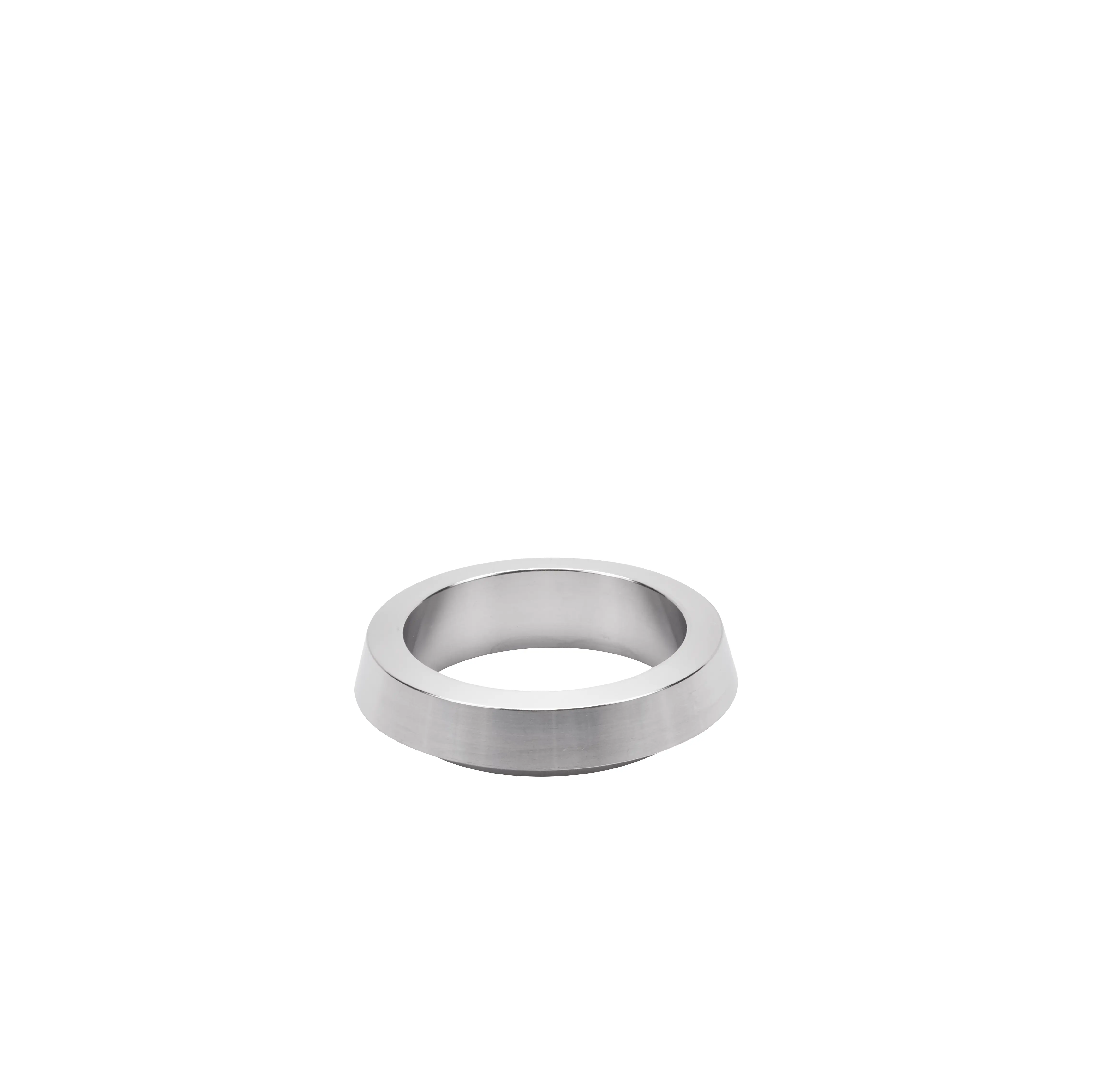

LINER SKD DN20 HSF0 1.4307


DIN 11851
9611290041

LINER SKD DN20 HSF0 1.4307


DIN 11851
9611290041
Lead time on request
  • 100% DIN standard
  • Hygienic and aseptic
  • Controlled tolerances and geometry
  • Weldability
  • Uniform surface appearance

Dokumentacija

Tubes and Fittings Product leaflet (en)PDF
Hygienic fittings DIN EN 10357-A Product leaflet (en)PDF
3D model for item - 9611290041 (en)UNKNOWN

Tehnične podrobnosti

Range
Connections
Product Model
DIN EN 10357-A Threaded Unions DIN 11851 SK
Size
DN20
Material
1.4307 (304L)
Finish
HSF0 (ID≤0.8/OD≤1.6)
Connection type
Weld ends
Standard
DIN 11851
Design
SKD short
OD/ID x t
23.00/20.00 x 1.50
Dimension A
36.00
Dimension B
13.00
Teža – neto (kg)
0.04 kg
Net weight
0.041 kg
