Hygienic fittings DIN EN 10357-A

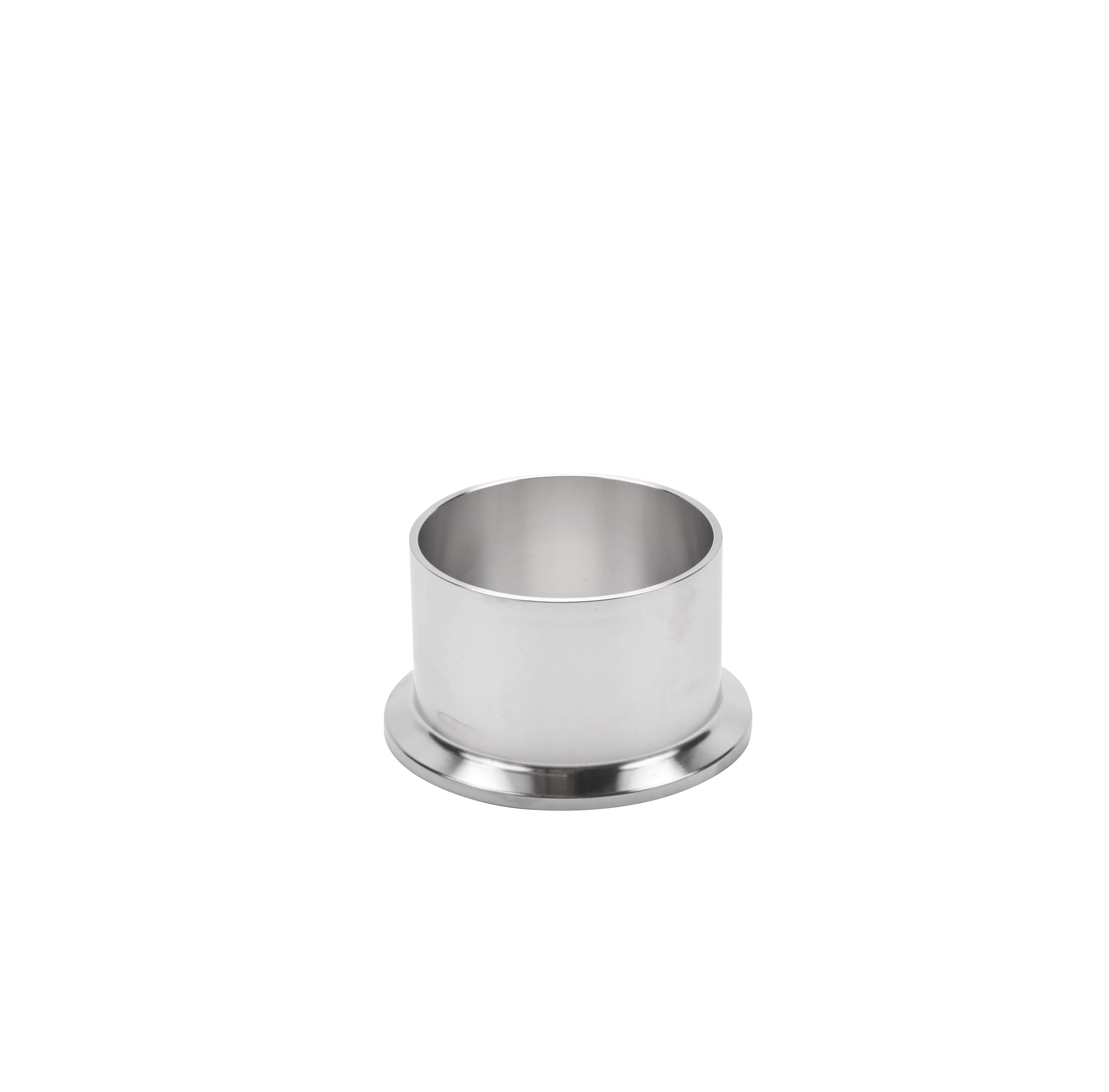

FERRULE KL DN40 H3 1.4404

9613444006

FERRULE KL DN40 H3 1.4404

9613444006
Lead time on request
  • 100% DIN standard
  • Hygienic and aseptic
  • Controlled tolerances and geometry
  • Weldability
  • Uniform surface appearance

Description

FERRULE KL DN40 H3 1.4404 - DIN 32676

Technical details

Range
Ferrules
Product Model
DIN EN 10357-A Clamp Unions DIN 32676
Size
DN40
Material
1.4404 (316L)
Finish
H3 (ID=0.8/OD=1.0)
Connection type
TriClamp and Weld
Standard
DIN 32676
Design
KL long
OD/ID x t
41.00/38.00 x 1.50
OD1/ID1 x t1
41.00/38.00 x 1.50
Dimension L, mm
33.00
Dimension A, mm
50.50
Dimension B
36.00
