Hygienic fittings DIN EN 10357-A

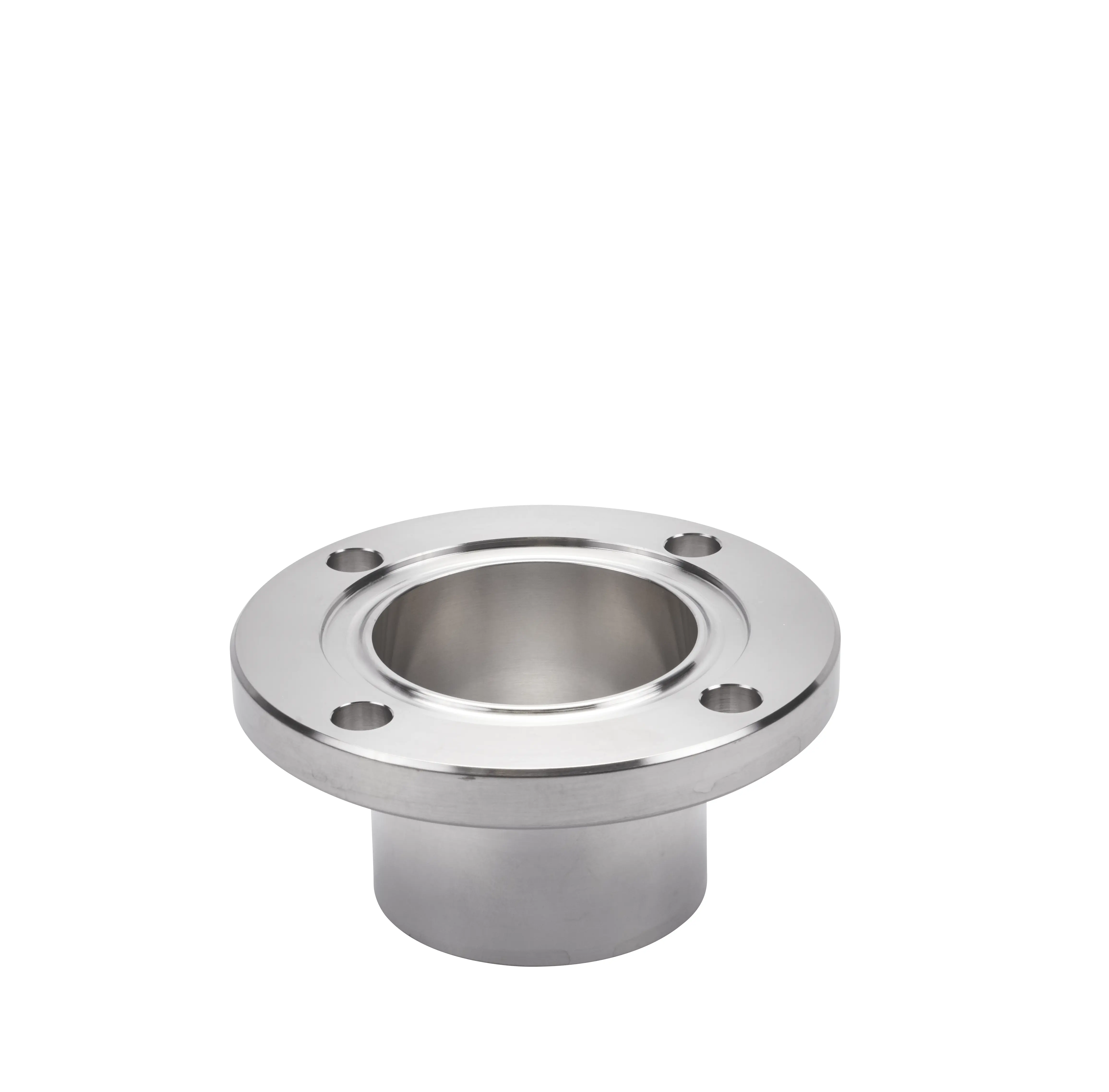

FLANGE BF DN32 H3 1.4404

9613403935

FLANGE BF DN32 H3 1.4404

9613403935
Lead time on request
  • 100% DIN standard
  • Hygienic and aseptic
  • Controlled tolerances and geometry
  • Weldability
  • Uniform surface appearance

Description

FLANGE BF DN32 H3 1.4404 - DIN 11864-2

Technical details

Range
Flanges
Product Model
DIN EN 10357-A Flange Unions DIN 11864-2
Size
DN32
Material
1.4404 (316L)
Finish
H3 (ID≤0.8/OD≤1.0)
Connection type
Weld ends
Standard
DIN 11864-2
Design
BF collar
OD/ID x t
35.00/32.00 x 1.50
Dimension A, mm
76.00
Dimension B
45.00
Dimension F, mm
59.00
Weight - Net (Kg)
0.32 kg

Documentation

Tubes and Fittings Product leaflet (en-US)PDF
Hygienic fittings DIN EN 10357-A Product leaflet (en-US)PDF
3D model for item - 9613403935 (en)UNKNOWN
