Hygienic fittings DIN EN 10357-A

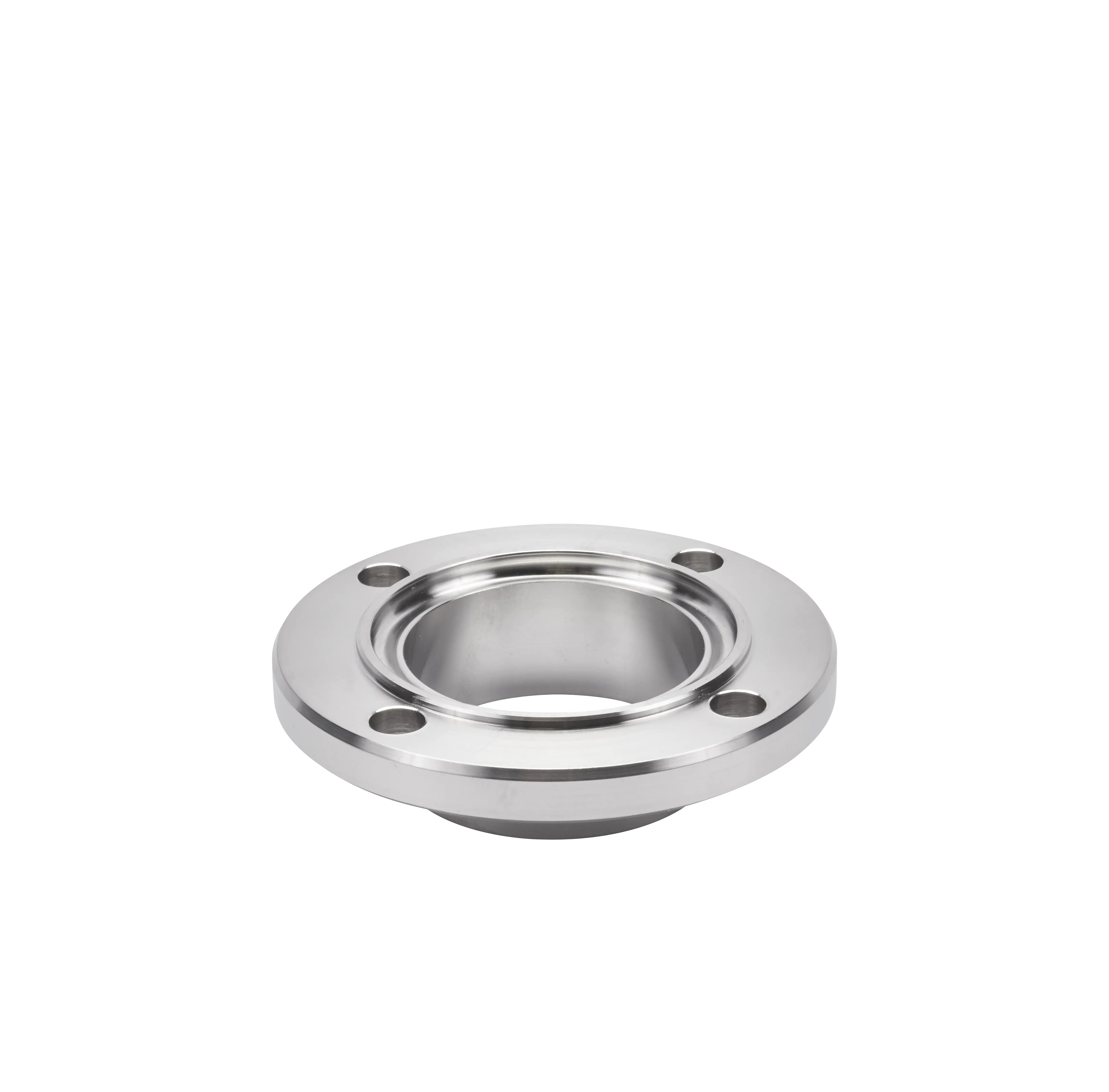

FLANGE NF DN10 H3 1.4307

8010000383

FLANGE NF DN10 H3 1.4307

8010000383
Lead time on request
  • 100% DIN standard
  • Hygienic and aseptic
  • Controlled tolerances and geometry
  • Weldability
  • Uniform surface appearance

Description

FLANGE NF DN10 H3 1.4307 - DIN 11853-2

Technical details

Range
Flanges
Product Model
DIN EN 10357-A Flange Unions DIN 11853-2
Size
DN10
Material
1.4307 (304L)
Finish
H3 (ID≤0.8/OD≤1.0)
Connection type
Weld ends
Standard
DIN 11853-2
Design
NF groove
OD/ID x t
13.00/10.00 x 1.50
Dimension A, mm
54.00
Dimension B
25.50
Dimension F, mm
37.00
Weight - Net (Kg)
0.152 kg
