LKC Non-return Valve

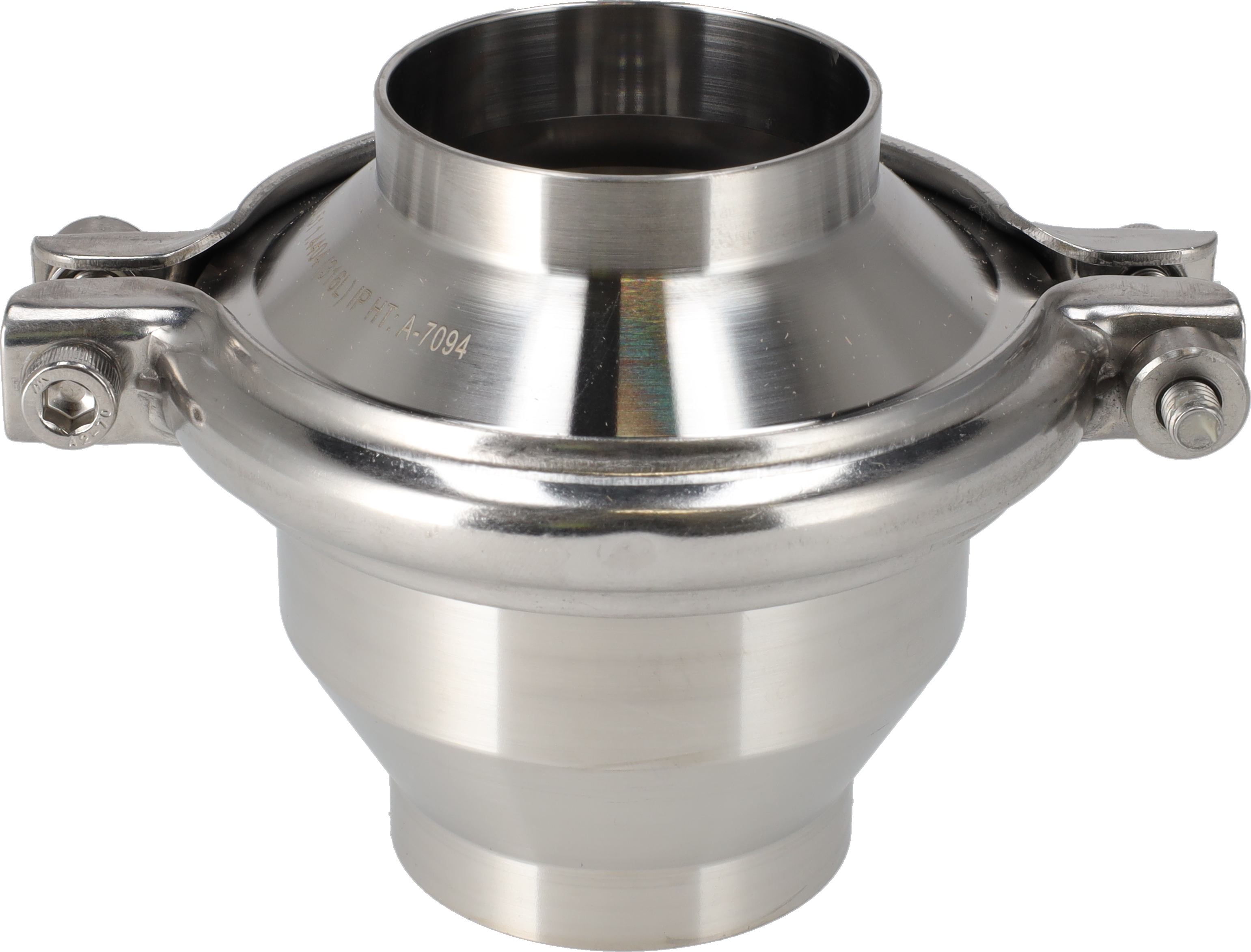

NON-RETURN VALVE LKC-2-DIN-W-

9614063150

NON-RETURN VALVE LKC-2-DIN-W-

9614063150
Lead time on request
  • Highly reliable, self-acting valve
  • Easy to install
  • Protects process equipment
  • Prevents reverse flow

Description

NON-RETURN VALVE LKC-2-DIN-W- - DN50-FPM-304

Technical details

Size inch
2
Size DIN
DN50
Product wetted steel part
1.4307 (304L)
Elastomer
FPM (Viton)
Connection type
Welding ends
Installation recommendations
Vertical position
Connection size
50
Connection size inch
2
Inside surface quality
Ra ≤ 0.8 μm
Outside surface quality
Bright
Max product pressure
1000 kPa (10 bar)
Max product pressure psi
14.5 PSI
Max temperature
140° C (EPDM)
Max temperature fahrenheit
284°F (EPDM)
Min temperature
-10° C
Min temperature fahrenheit
14°F
Dimension a mm
87.5
Dimension a inch
3.44
Dimension h mm
99.0
Dimension h inch
4.29
Dimension t mm
2
Dimension t inch
0.06
Outer diameter mm
54.0
Outer diameter inch
2.00
Inner diameter mm
50.0
Inner diameter inch
1.91
Classification
II 2 G D*
Certification
ATEX

Documentation

LKC Non-return Valve Product leaflet (en-US)PDF
Alfa Laval LKC-2 Non-return Valve & LKC UltraPure Non-return Valve instruction manual (en)PDF
LKC-2_-_LKC_UltraPure_-_Non-return_Valve_Manual_EN-GB (en)PDF
