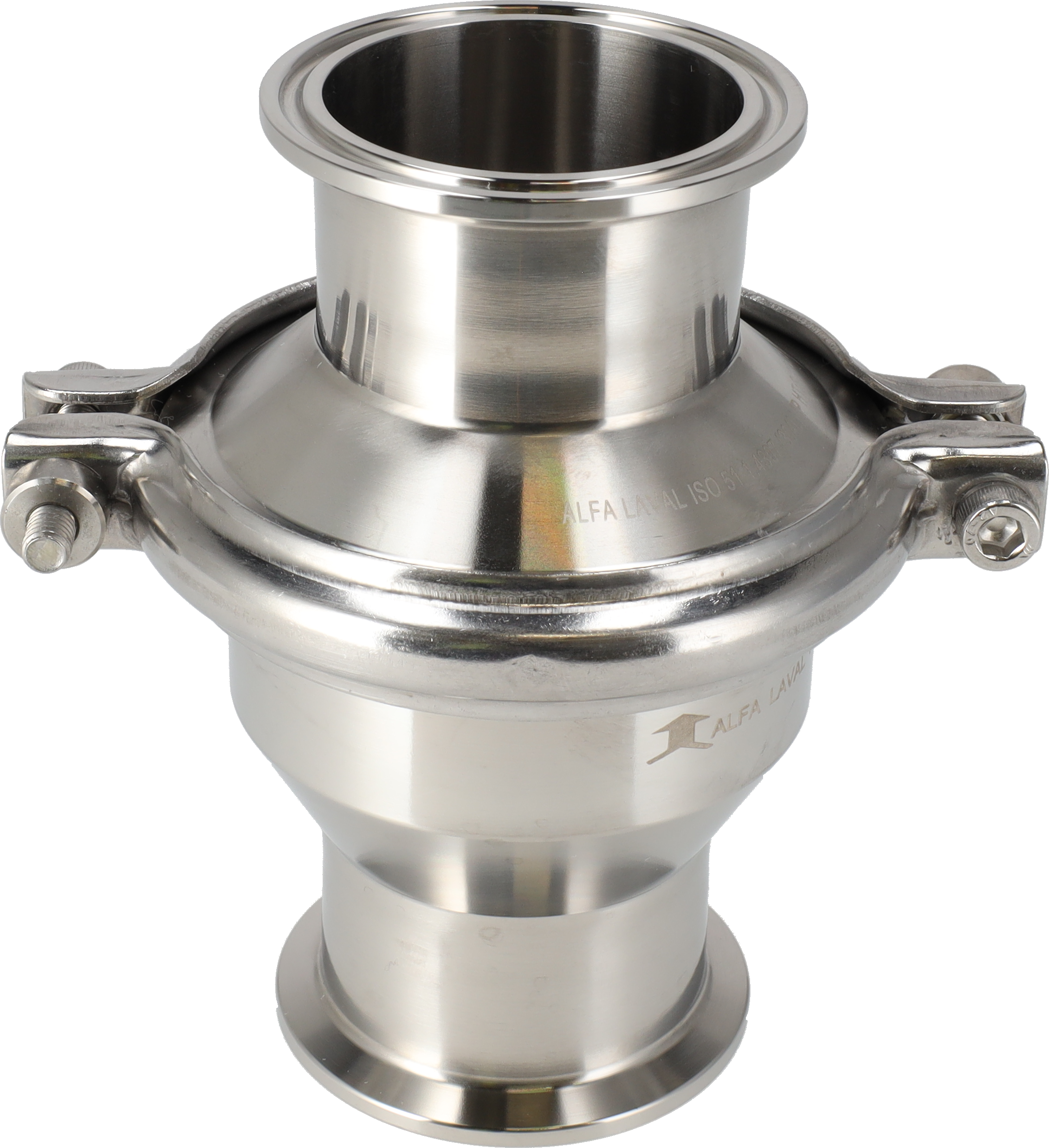

LKC Non-return Valve

NON-RETURN VALVE LKC-2-ISO-

9612650107

NON-RETURN VALVE LKC-2-ISO-

9612650107
Lead time on request
  • Highly reliable, self-acting valve
  • Easy to install
  • Protects process equipment
  • Prevents reverse flow

Description

NON-RETURN VALVE LKC-2-ISO- - CLAMP-51-EPDM-316L

Technical details

Size inch
2
Product wetted steel part
1.4404 (316L)
Elastomer
EPDM
Connection type
Clamp ends
Installation recommendations
Vertical position
Connection size
50
Connection size inch
2
Inside surface quality
Ra ≤ 0.8 μm
Outside surface quality
Bright
Max product pressure
1000 kPa (10 bar)
Max product pressure psi
14.5 PSI
Max temperature
140° C (EPDM)
Max temperature fahrenheit
284°F (EPDM)
Min temperature
-10° C
Min temperature fahrenheit
14°F
Dimension a mm
87.5
Dimension a inch
3.44
Dimension h mm
99.0
Dimension h inch
4.29
Dimension t mm
1.45
Dimension t inch
0.06
Outer diameter mm
51.4
Outer diameter inch
2.00
Inner diameter mm
48.5
Inner diameter inch
1.91
Classification
II 2 G D*
Certification
ATEX
Size iso
51
