- Reliable, constant tank pressure control
- Variable pressure setting
- Optimized cleaning
- Built-in pressure gauge
- Fully cleanable with Cleaning-in-Place system
Description
TANK PRESSURE REGULATOR - CIP BEND 2" CLAMP
Technical details
Valve accessory type
Bend for CIPSize DIN
DN50Connection type
ClampProduct wetted steel part
1.4404 (316L)Size mm
51Size inch
2Elastomer
EPDMInside surface quality
Ra ≤ 0.8 μmOutside surface quality

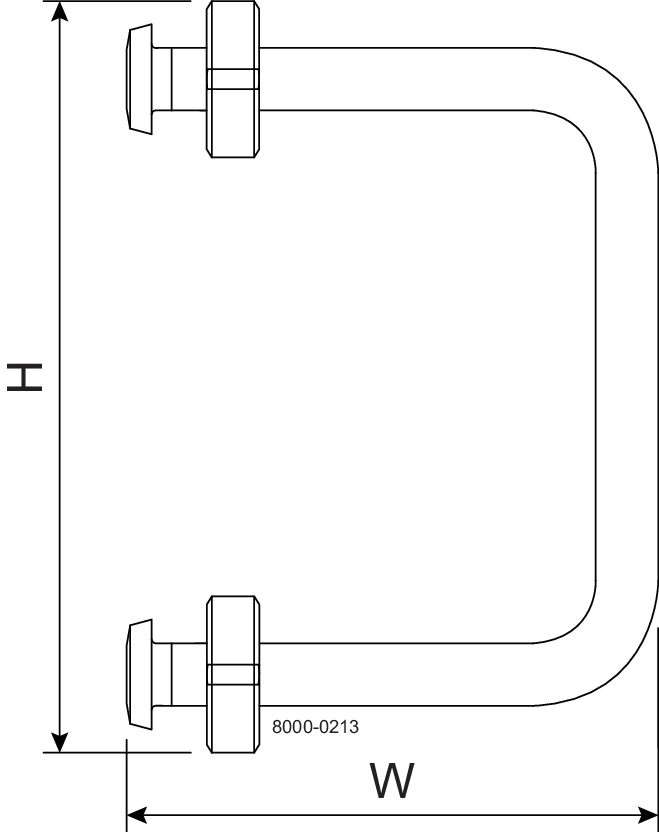

BlastedDimension h mm
460Dimension h inch
18.11Dimension w mm
230Dimension w inch
9.06Weight - Net (Kg)
1.3 kg
