Description

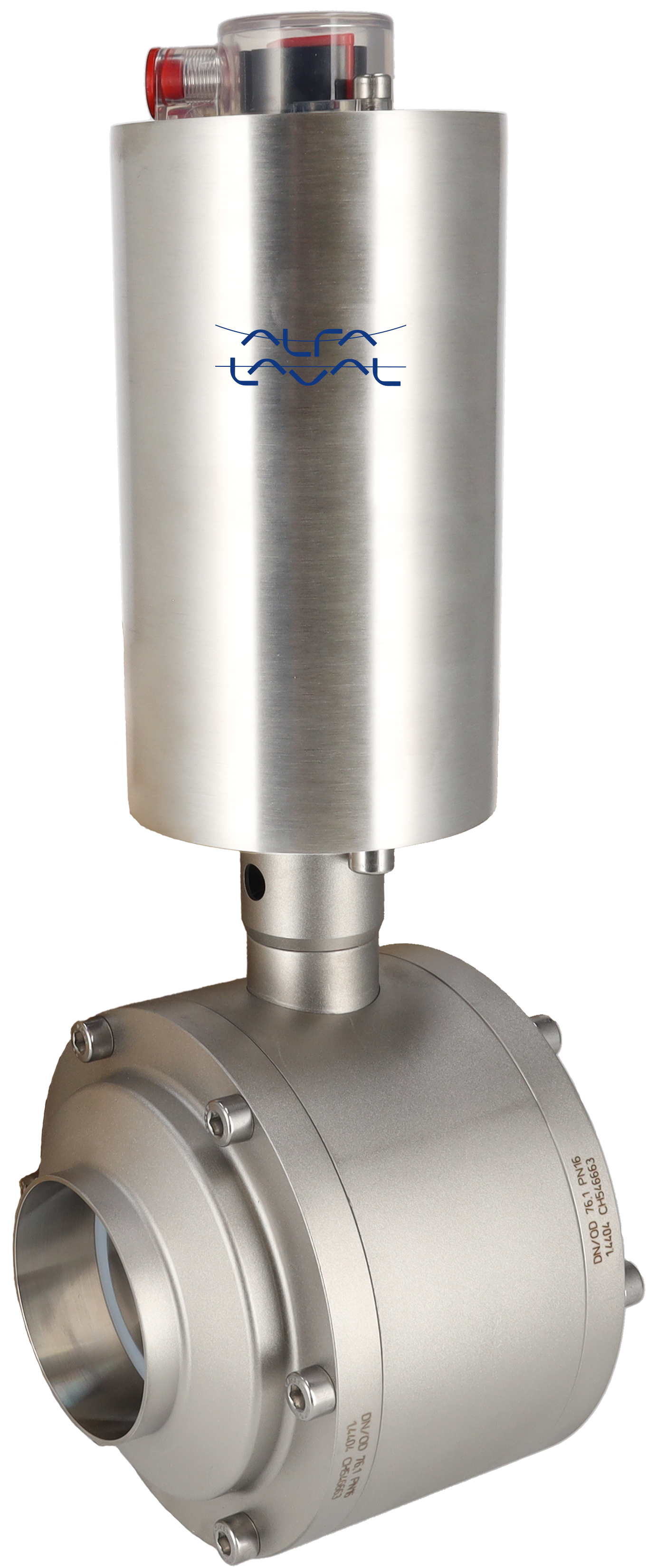

BALL VALVE SBV-DN80-W/W-NC - BALL VALVE SBV-DN80-W/W-NC - FPM-ACT. Ø104-CAVITY FILLER
Technical details
Size DIN
DN80Connection type
Welding endsSize mm
76.1Size inch
3.0Product wetted steel part
1.4404 (316L)Other steel parts
1.4307 (304)Elastomer
FPM (Viton)Other seals
NBRMax product pressure
0 to 1600 kPa (16 bar)Max product pressure psi
478 PSIActuator function
Normally closedActuation
PneumaticInside surface quality
Ra < 0.8 µmOutside surface quality
BlastedTemperature range operating
+0 °C to +95 °CTemperature range operating fahrenheit
+32 °F to +203 °FMin product pressure
Full vacuumMin product pressure psi
Full vacuumTemperature range steralization
0°C to 140°CTemperature range steralization fahrenheit
to +284 °FTemperature range ambient air
+4 °C to +45 °CTemperature range ambient air fahrenheit
+39 °F to +113 °FBody combination
Standard actuator ø104Outer diameter mm
85Inner diameter mm
81Classification
II 2 G DDimension a mm
159Dimension a inch
6.26Dimension b mm
163Dimension b inch
6.42Dimension e mm
104Dimension e inch
4.09Dimension f mm
346Dimension f inch
13.62Dimension l mm
9.89Dimension l inch
0.39Dimension t mm
2Weight - Net (Kg)
8 kg
