- Straightforward, robust, hygienic and reliable design
- Fast-acting
- Minimal pressure drop
- Leakproof
- Authorized to carry the 3-A symbol
Description

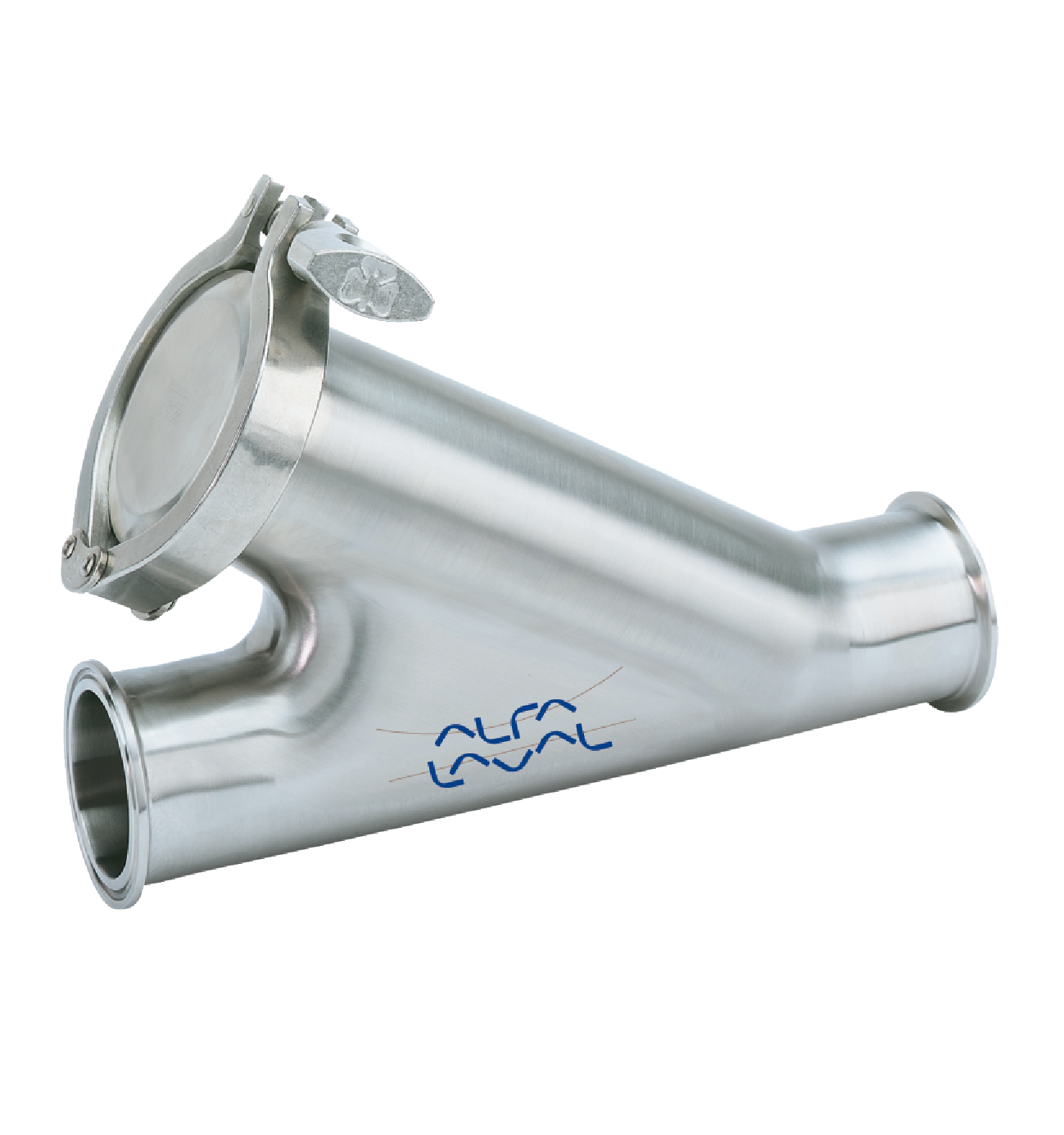

45BYMP-3-316L-SFY - TRI-CLAMP VALVE
Technical details
Size mm
76.10Size inch
3.0Product wetted steel part
316L Stainless SteelOther steel parts
304 Stainless SteelElastomer
FPM (Viton)Gasket material
NBRBall material
SFYConnection type
Check Valves ("Y" Type) - Tri-Clamp End ConnectionConnection size
76.20Connection size inch
3.0Max product pressure
13 barMin product pressure
0.07 bar - to unseat check ballMax product pressure psi
200 PSIMin product pressure psi
1 PSI - to unseat check ballMax temperature
Based on elastomer choiceDimension a mm
314.3Dimension a inch
123 /8Certification
3AOutside surface quality
PolishedWeight - Net (Kg)
6.811 kg
