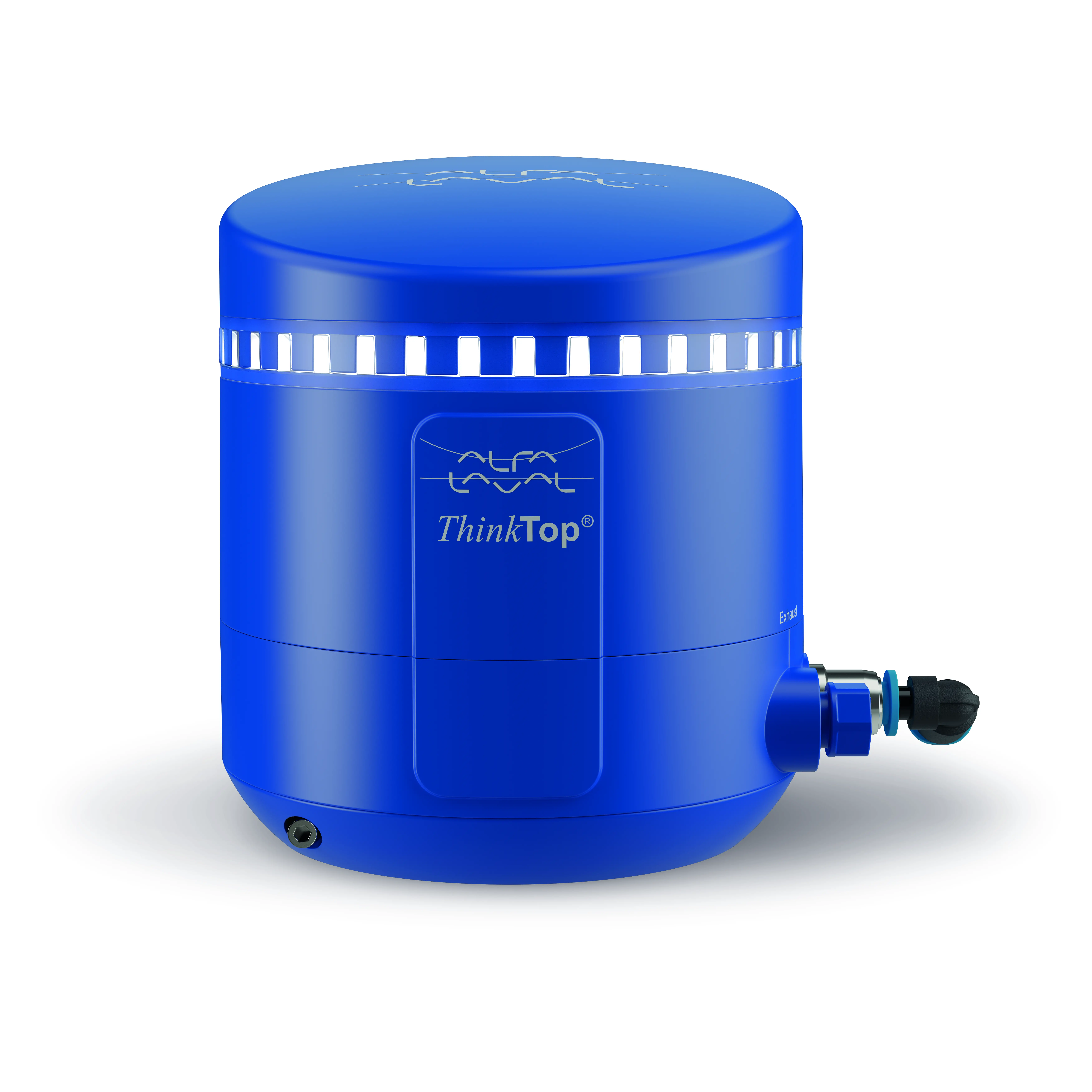

TTV50 24V DIG M12 1SV 1/4".
THINKTOP V50 DIGITAL 24VDC PNP M12 PLUG 1 SOLENOID 3/2 1/4"
9615400406
- 自动设置（Auto setup）
- 阀门自动识别
- 容差范围的自动选择
- 快速、实时和灵活设置（Fast, Live and Flex Setup）
- 360度LED指示
- 爆破阀座清洁
- 脉冲阀座清洁
- 可互换（螺纹）空气接头
- 可与ThinkTop经典版互换
文件
技术详情
Product Model
ThinkTop V50 DigitalElectric connection
M12Solenoid type
3/2螺线管数量
1Air fitting inch
¼Certificate
UL/CSA Certificate: E174191Dimension a inch
4.84Dimension a mm
123Dimension b inch
4.13Dimension b mm
105Dimension c inch
7.87Dimension c mm
200Dimension d inch
5.91Dimension d mm
150Other steel parts
1.4301 (304)Air pressure bar
6-8Air fitting material
Nickel platedAutomation type
ThinkTop V50B10 data
5 million cyclesCommunication interface
DC PNPM12 chassis connector
6 wire, 8-pin seriesM12 chassis connector material
Stainless steel, Gold plated pinsMean time to failure mttf
224 yearsNominal power (W)
0.3 WOperating recommendation
Operate once a month to prevent dry-outPlastic part material
Nylon PA 12Protection class ip
IP69KProtection class nema
4, 4X, 6Sensor accuracy mm
± 0.1Working temperature range c
-10°C to +60°CWorking temperature range f
+14°F to +140°FAir supply bar
3-8Max wire diameter mm2
0.75 (AWG20)Vibration (Hz)
18 Hz-1 kHzShock (G)
100Weight - Net (Kg)
0.68 kgNet weight
0.675 kg
