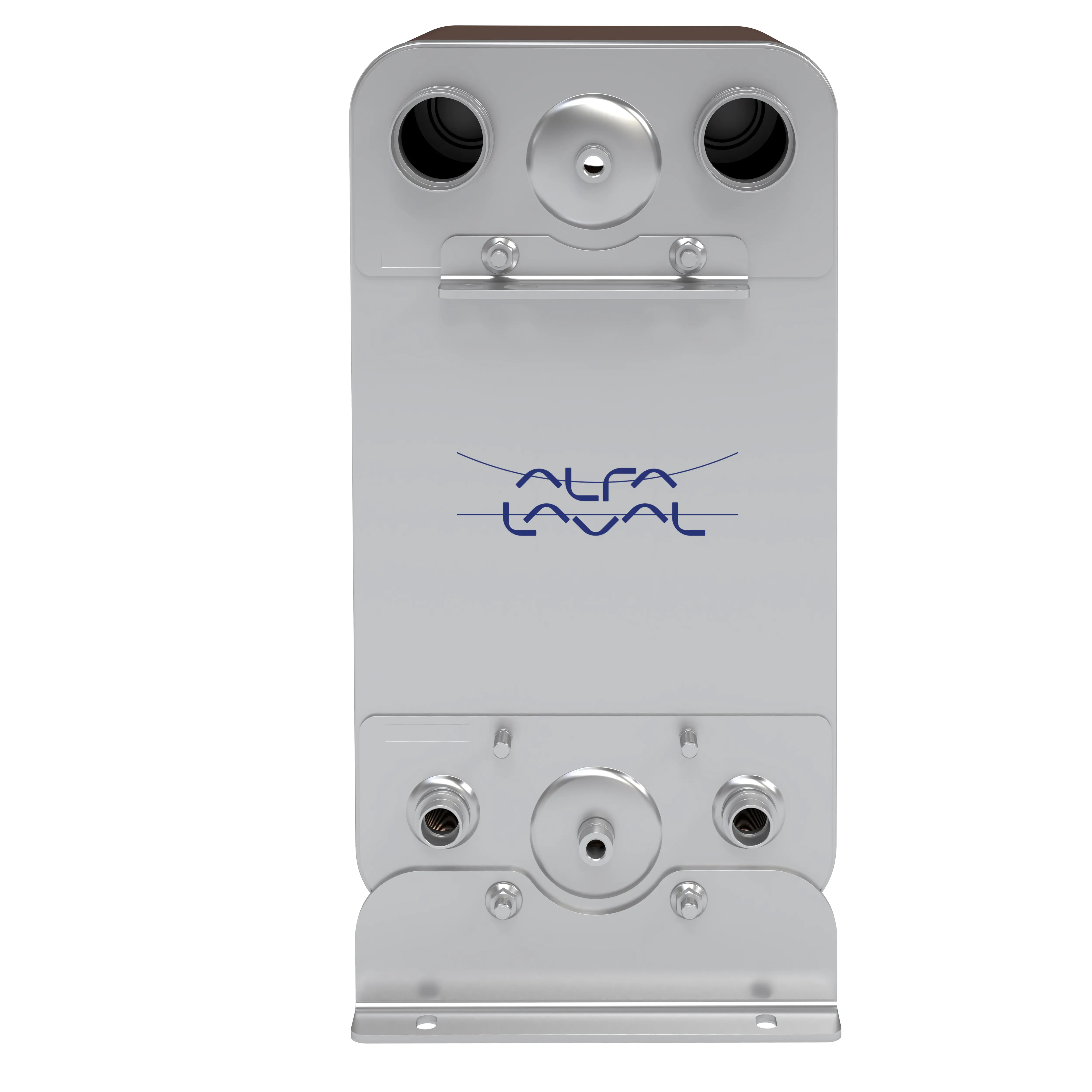

Brazed plate heat exchanger - ACH240DQ 202 plates
3075004372
- Compact
- Easy to install
- Self-cleaning
- Low level of service and maintenance is required
- All units are pressure and leak tested
- Gasket free
Description
ACH240DQ-202AH-F - Check drawing for configuration info
Technical details
Product Type
Evaporator / Chiller - Dual circuitApplication
RefrigerationApproval
UL/CRNNumber Of Plates
202Connection Size Cold Side
2 1/2" (73)Connection Size Hot Side
54.2 (2 1/8")Connection Type Cold Side
Clamp (Victaulic)Connection Type Hot Side
SolderingNominal Capacity (TR)
85Number of Circuits
DualWeight - Gross (Kg)
93.18 kgWeight - Net (Kg)
93.18 kgDimension (mm)
529 X 289 X 525 mmPackage Dimension (mm)
580 X 335 X 780 mm
